GET_ERROR and GET_ERROR_ID (Get error and error ID locally) instructions
The get error instructions provide information about program block execution errors. If you
add a GET_ERROR or GET_ERROR_ID instruction to your code block, you can handle
program errors within your program block.
GET_ERROR

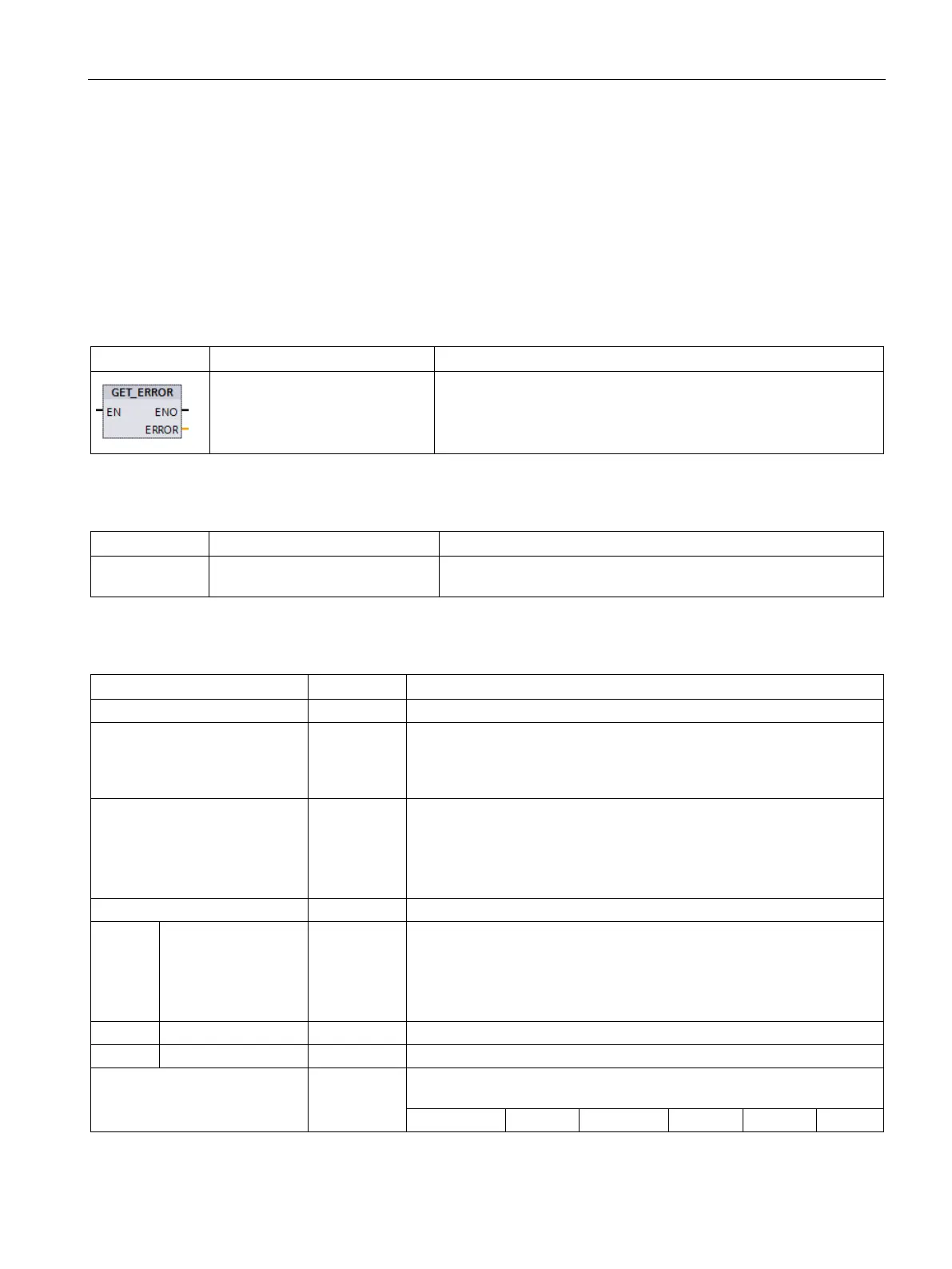

Table 8- 144 GET_ERROR instruction
LAD / FBD
SCL
Description
GET_ERROR(_out_);
Indicates that a local program block execution error has occurred
and fills a predefined error data structure with detailed error infor-
mation.
Table 8- 145 Data types for the parameters
Parameter
Data type
Description
ERROR ErrorStruct Error data structure: You can rename the structure, but not the
members within the structure.
Table 8- 146 Elements of the ErrorStruct data structure
Structure components
Data type
Description
ERROR_ID
Word
Error ID
FLAGS Byte Shows if an error occurred during a block call.
• 16#01: Error during a block call.
• 16#00: No error during a block call.
REACTION Byte Default reaction:
• 0: Ignore (write error),
• 1: Continue with substitute value "0" (read error),
• 2: Skip instruction (system error)
CODE_ADDRESS
CREF
Information about the address and type of block
BLOCK_TYPE Byte Type of block where the error occurred:
• 1: OB
• 2: FC
• 3: FB
CB_NUMBER
UInt
Number of the code block
OFFSET
UDInt
Reference to the internal memory
MODE Byte Access mode: Depending on the type of access, the following infor-
mation can be output:
Mode
(A)
(B)
(C)
(D)
(E)
