Siemens SIMATIC S7-1200

Communication processor and Modbus TCP
13.3 Point-to-point (PtP) communication
S7-1200 Programmable controller
1112 System Manual, V4.2, 09/2016, A5E02486680-AK
Table 13- 9 Condition codes
STATUS (W#16#....)
Description
81A0
Specific protocol does not exist.
81A1 Specific baud rate does not exist.
81A2
Specific parity option does not exist.
81A3 Specific number of data bits does not exist.
81A4
Specific number of stop bits does not exist.
80A5
Specific type of flow control does not exist.
81A6
Wait time is 0 and flow control enabled
81A7
XON and XOFF are illegal values (for example, the same value)
81A8
Error in the block header (for example, wrong block type or wrong block length)
81A9
Reconfiguration rejected because a configuration is in progress
81AA
Invalid RS422/RS485 mode of operation
81AB
Invalid presetting of the receive line for break detection
81AC
Invalid RS232 break handling
8280
Negative acknowledgement while reading the module
8281
Negative acknowledgement while writing the module
8282
DP slave or module not available
13.3.5.3
Send_Config (Configure serial transmission parameters dynamically)

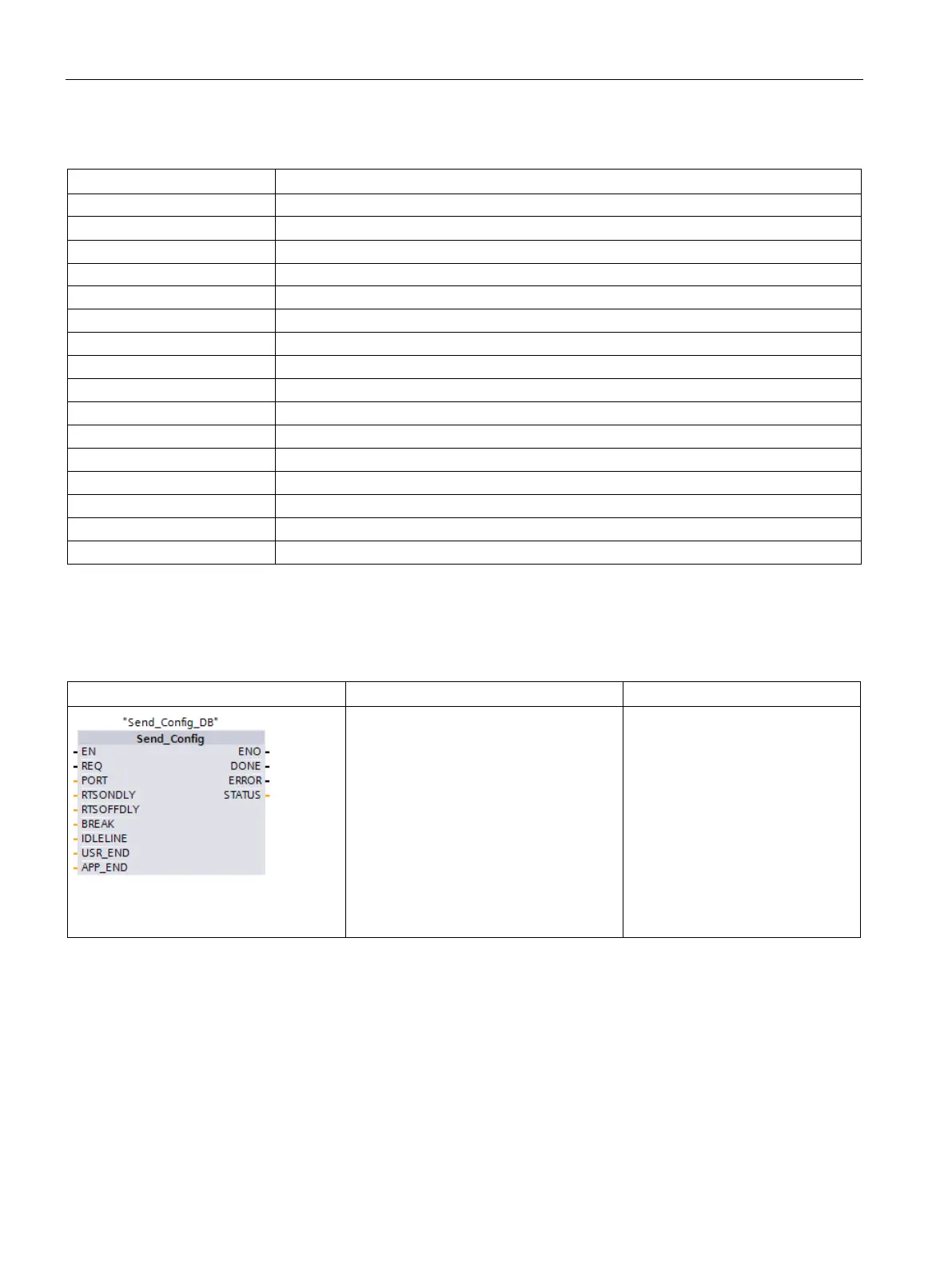

Table 13- 10 Send_Config (Send Configuration) instruction
LAD / FBD
SCL
Description
"Send_Config_DB"(
REQ:=_bool_in_,
PORT:=_word_in_,
RTSONDLY:=_uint_in_,
RTSOFFDLY:=_uint_in_,
BREAK:=_uint_in_,
IDLELINE:=_uint_in_,
USR_END:=_string_in_,
APP_END:=_string_in_,
DONE=>_bool_out_,
ERROR=>_bool_out_,
STATUS=>_word_out_);
Send_Config allows the dynamic
configuration of serial transmission
parameters for a PtP communica-
tion port. Any queued messages
within a CM or CB are discarded
when Send_Config is executed.
1
STEP 7 automatically creates the DB when you insert the instruction.
