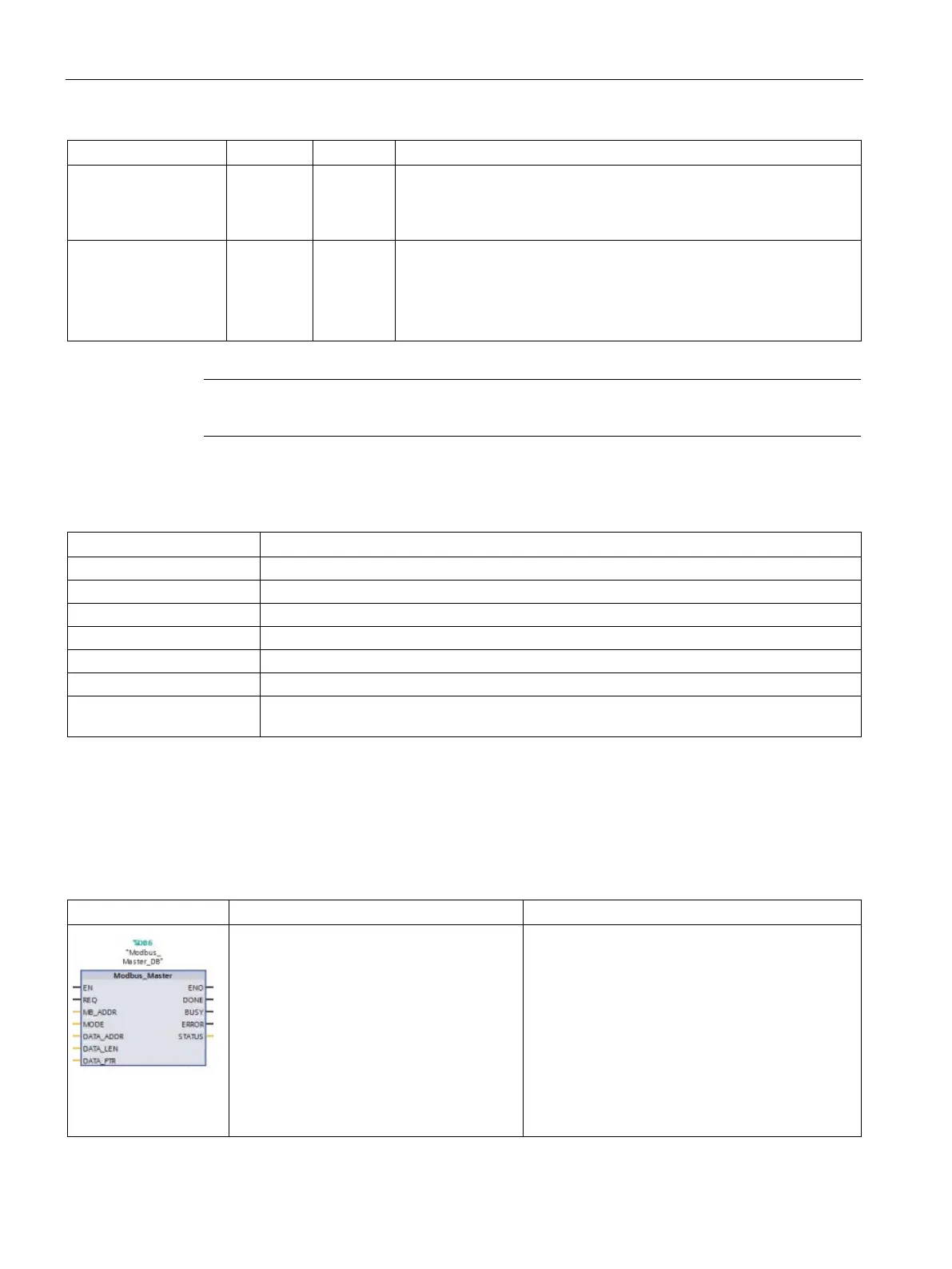

Tag
Data type
Default
Description
EN_DIAG_ALARM Bool 0 Activate diagnostics interrupt:
• 0 = not activated
• 1 = activated
STOP_BITS USInt 1 Number of stop bits:
• 1 = 1 stop bit
• 2 = 2 stop bits
• 0, 3 to 255 = reserved
Note
Required setting for the use of PROFIBUS cables with CM 1241 for RS485
Table 13- 73 Modbus_Comm_Load execution condition codes
1
STATUS (W#16#)
Description
0000
No error
8180
Invalid port ID value (wrong port/hardware identifier for communication module)
8181
Invalid baud rate value
8182
Invalid parity value
8183
Invalid flow control value
8184
Invalid response timeout value (response timeout less than the 5 ms minimum)
8185 MB_DB parameter is not an instance data block of a Modbus_Master or Modbus_Slave
instruction.
1
In addition to the Modbus_Comm_Load errors listed above, errors can be returned from the underlying PtP communica-
tion instructions.
Modbus_Master (Communicate using SIPLUS I/O or the PtP port as Modbus RTU master) instruction
Table 13- 74 Modbus_Master instruction
LAD / FBD
SCL
Description
"Modbus_Master_DB"(
REQ:=_bool_in_,
MB_ADDR:=_uint_in_,
MODE:=_usint_in_,
DATA_ADDR:=_udint_in_,
DATA_LEN:=_uint_in_,
DONE=>_bool_out_,
BUSY=>_bool_out_,
ERROR=>_bool_out_,
STATUS=>_word_out_,
DATA_PTR:=_variant_inout_);
The Modbus_Master instruction communicates as
a Modbus master using a port that was configured
by a previous execution of the Mod-
bus_Comm_Load instruction. An instance data
blo
ck is assigned automatically when you place the
Modbus_Master instruction in your program. This
Modbus_Master instance data block is used when
you specify the MB_DB parameter for the Mod-
bus_Comm_Load instruction.
