Technical specifications
A.10 Analog signal modules (SMs)
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
1465

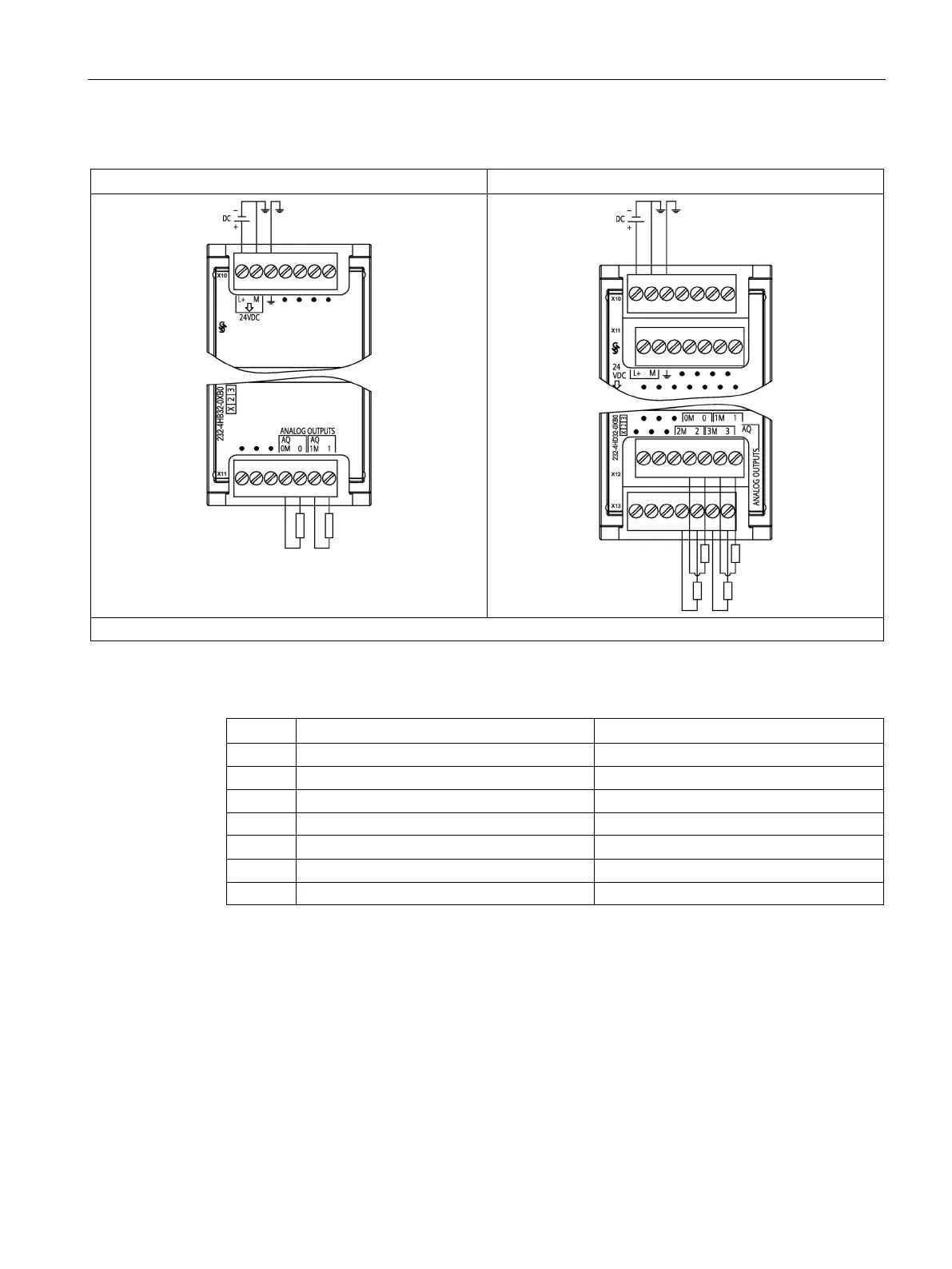

Table A- 148 Wiring diagrams for the analog output SMs
SM 1232 AQ 2 x 14 bit (6ES7232-4HB32-0XB0)
SM 1232 AQ 4 x 14 bit (6ES7232-4HD32-0XB0)
Note: Connectors must be gold. See Appendix C, Spare Parts for article number.
Table A- 149 Connector pin locations for SM 1232 AQ 2 x 14 bit (6ES7232-4HB32-0XB0)
Pin
X10 (gold)
X11 (gold)
1
L+ / 24 V DC
No connection
2
M / 24 V DC
No connection
3
Functional Earth
No connection
4
No connection
AQ 0M
5
No connection
AQ 0
6
No connection
AQ 1M
7 No connection AQ 1
