Device conf
iguration
6.4
Conf
iguration c
ontrol
S7
-
1200 Programmable controller
System Manual
,
V4.2, 09/2016
,
A5E02486680
-
AK
167

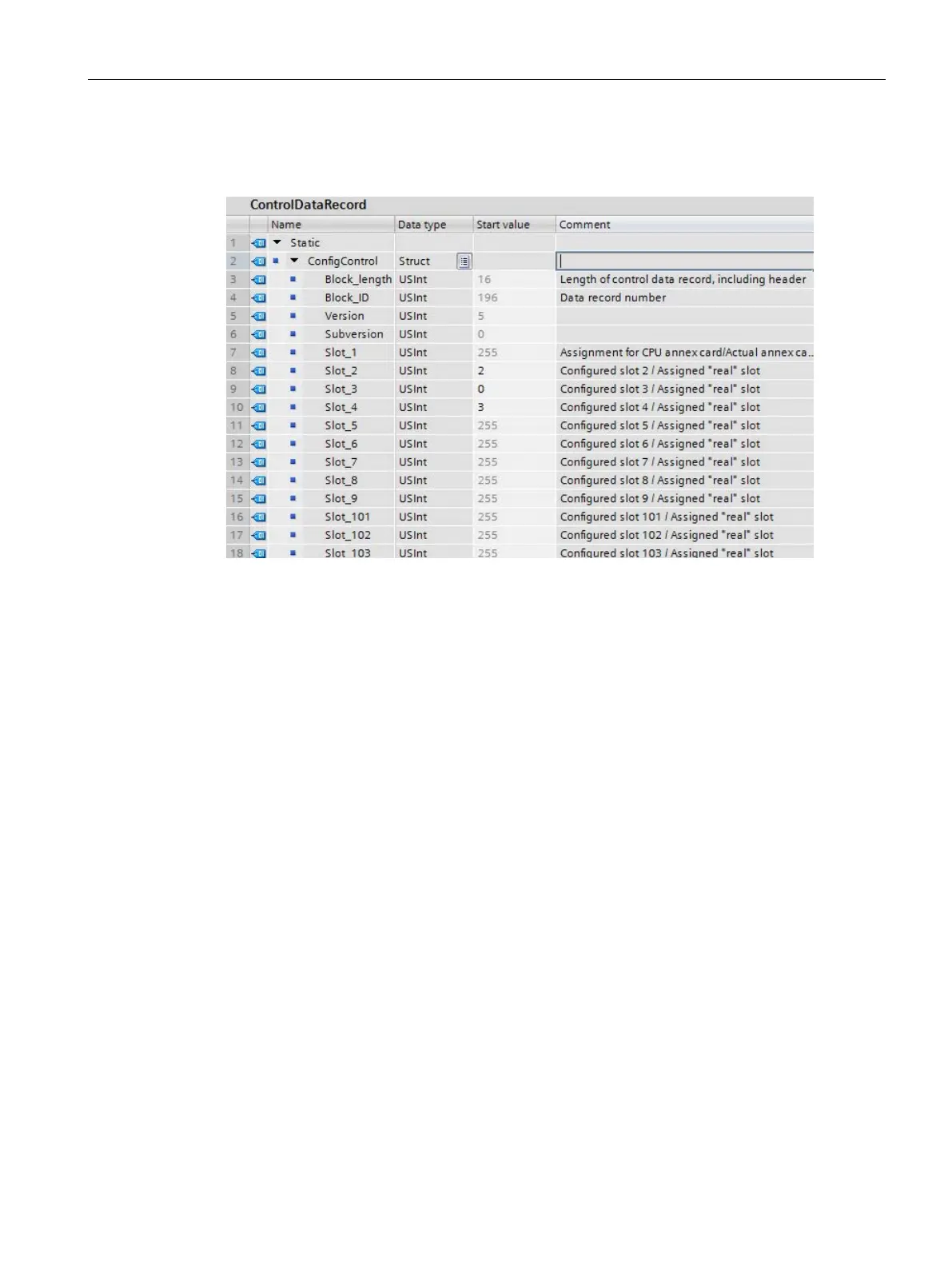

To indicat
e the abs
ence of
the missin
g module, y
ou mus
t configure s
lot 3 in th
e control dat
a
record wit
h 0.
