Extended instructions
9.7 Diagnostics (PROFINET or PROFIBUS)
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
465
2. Assigning parameters for the GetStationInfo instruction:

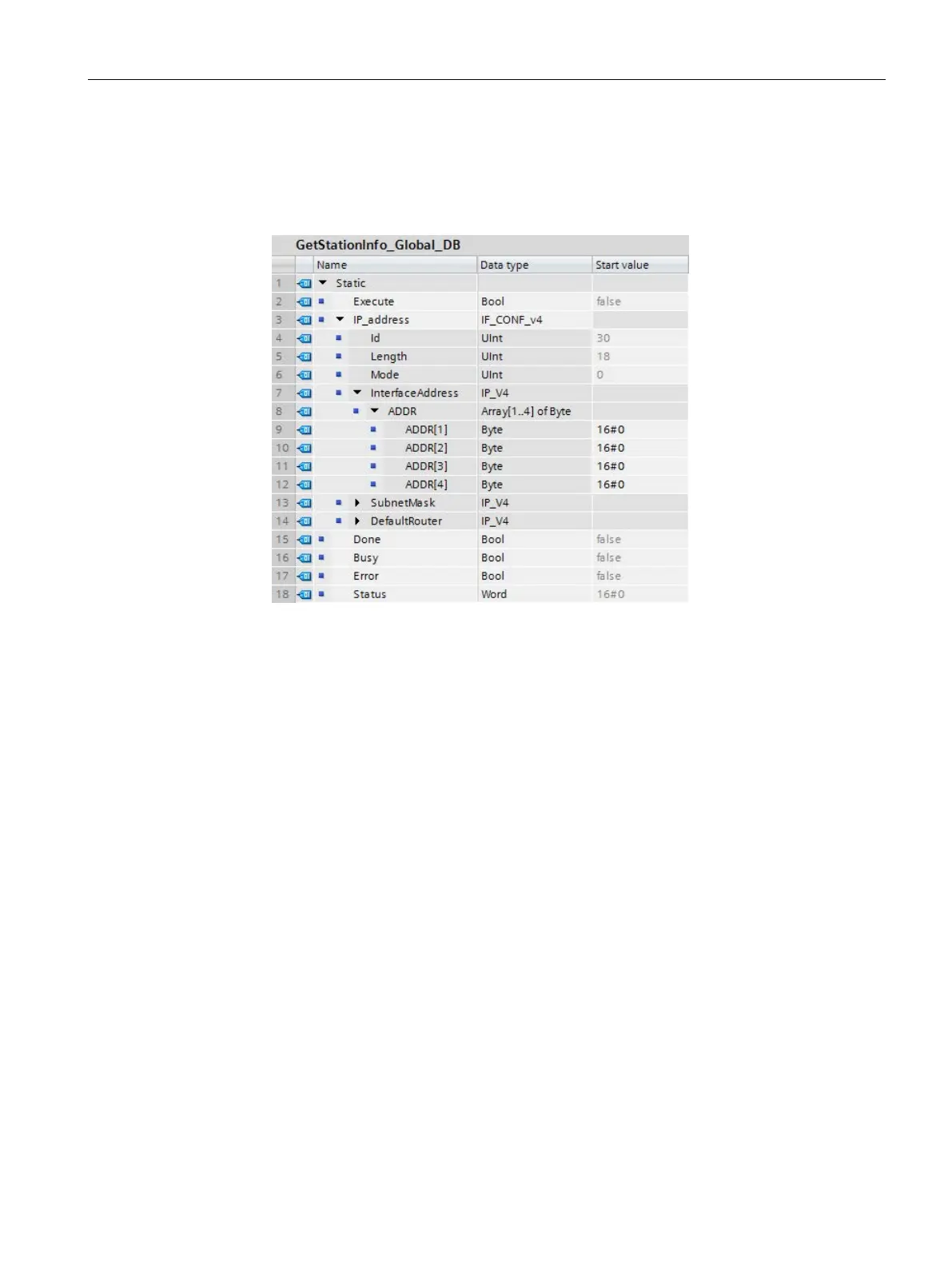

– Create five tags and a structure with the IF_CONF_v4 data type in a global data block
for storing the IP address data. Assign any name to the structure. (In the example, the
structure name is "IP_Address".)
