Extended instructions
9.9 Recipes and Data logs
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
507

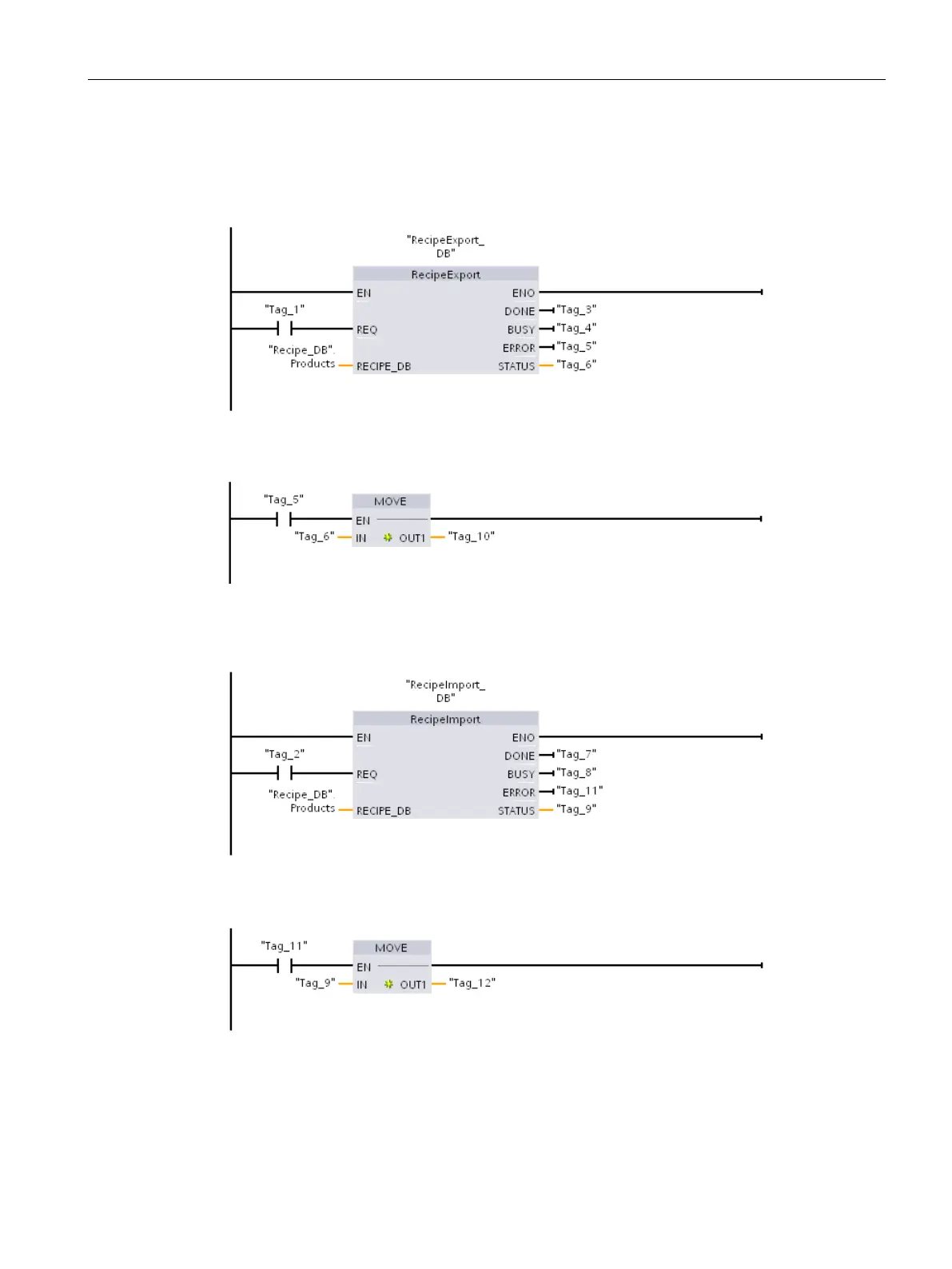

Example recipe program
Network 1
A rising edge on REQ starts the export process. A CSV file is generated from the
recipe DB data and placed in the CPU memory recipes folder.
Network 2
Capture the STATUS output from RecipeExport execution, because it is only valid
for one scan.
Network 3
A rising edge on REQ starts the import process. The existing recipe DB is loaded
with all recipe data read from the corresponding CSV file that is located in the CPU memory
recipes folder.
Network 4
Capture the STATUS output from RecipeImport execution, because it is only valid
for one scan.
