Technology instructions

10.1 Counting (High-speed counters)

S7-1200 Programmable controller

System Manual, V4.2, 09/2016, A5E02486680-AK

559

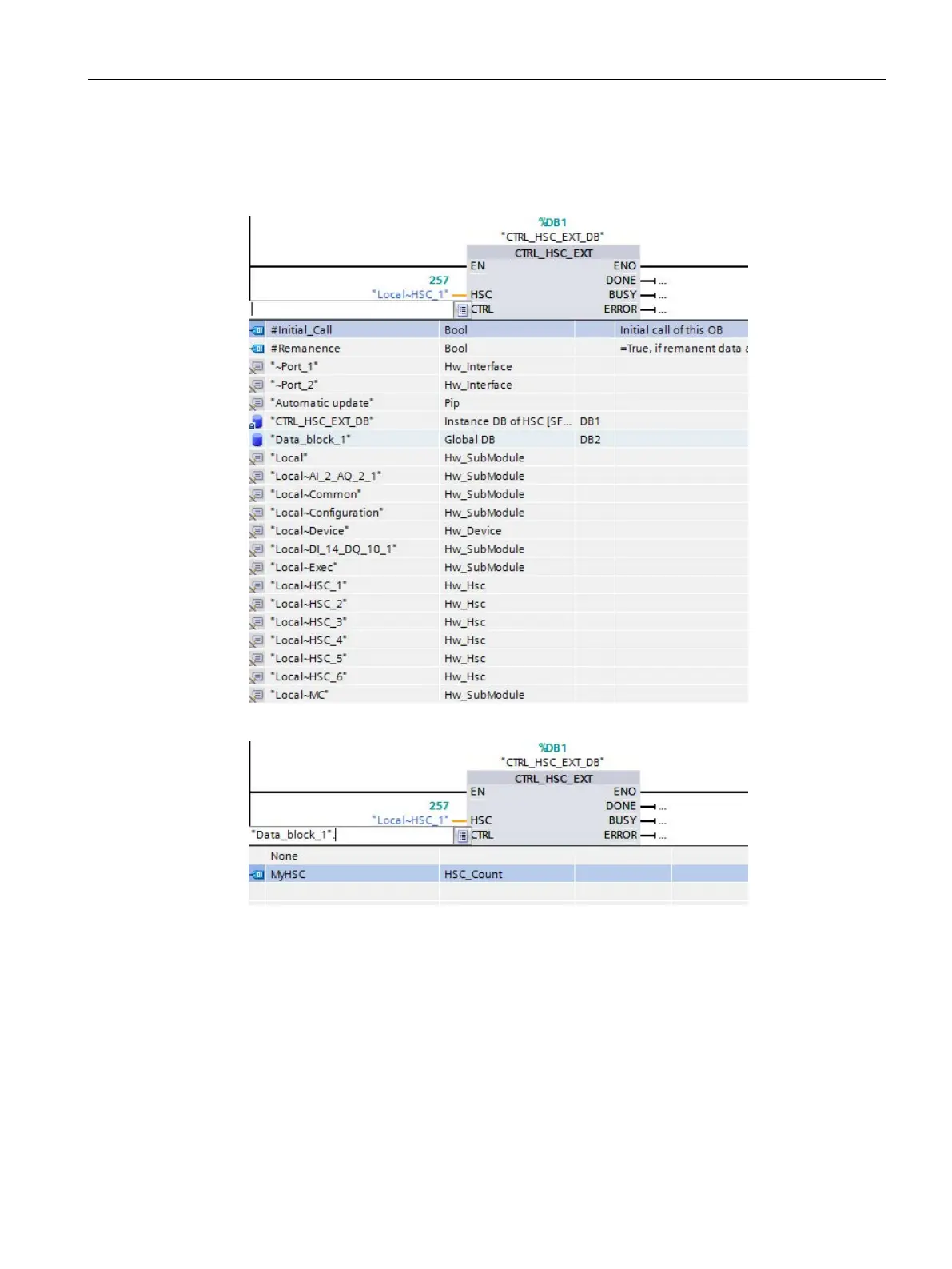

4. Assign the variable "'Data_block_1'. MyHSC" to the CTRL input pin of the

CTRL_HSC_EXT instruction:

– Select "Data_Block_1".

– Select "MyHSC".
