Communication
11.2 PROFINET
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
805
The CPU 1211C, 1212C, and 1214C have a single Ethernet port and do not include a
integrated Ethernet Switch. A direct connection between a programming device or HMI and a
CPU does not require an Ethernet switch. However, a network with more than two CPUs or
HMI devices requires an Ethernet switch.
①
r-

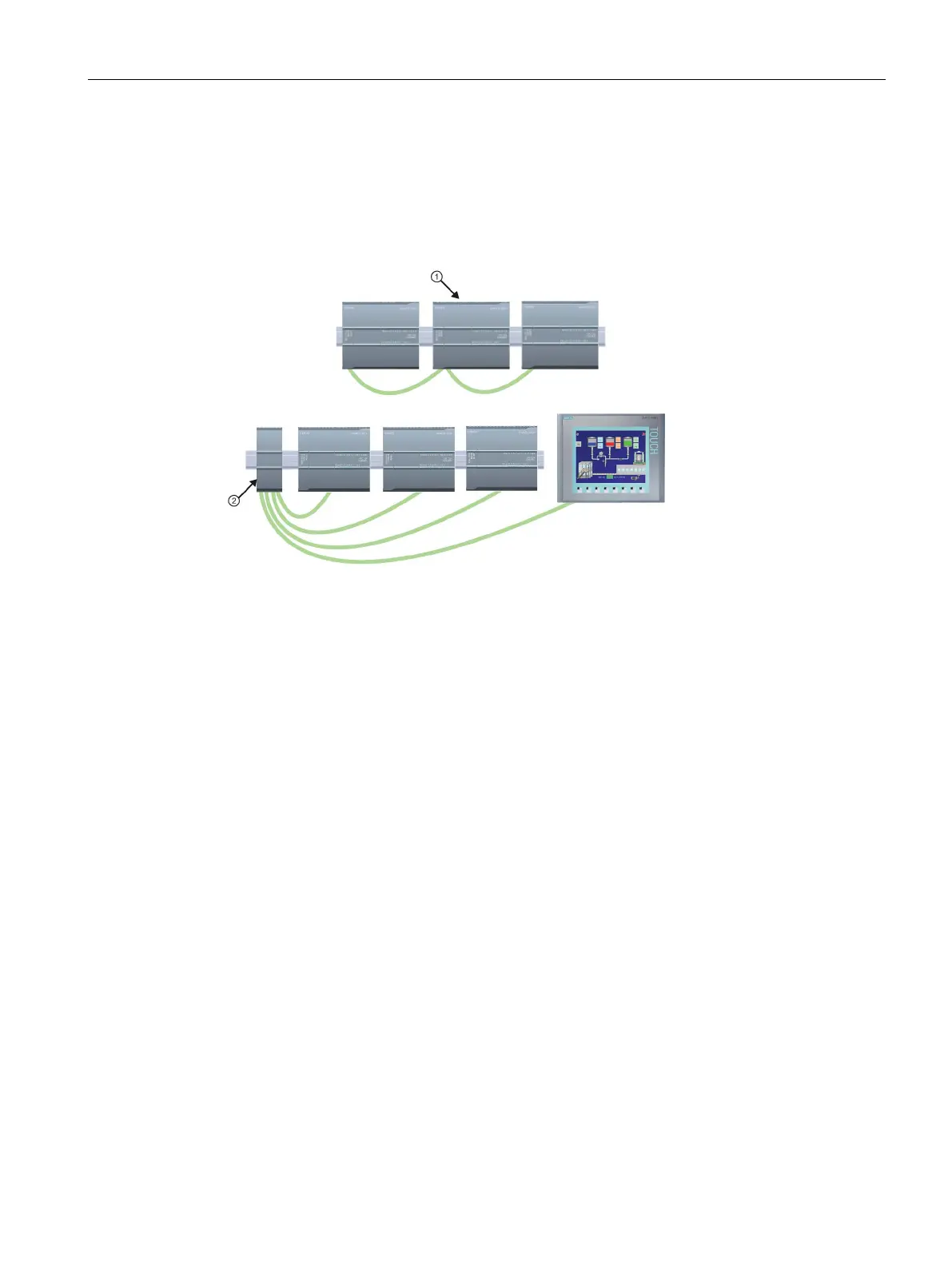

The CPU 1215C and the CPU 1217C have a built-in 2-port Ethernet switch. You can have a
network with a CPU 1215C and two other S7-1200 CPUs. You can also use the rack-
mounted CSM1277 4-port Ethernet switch for connecting multiple CPUs and HMI devices.
