11.5 S7 communication
S7-1200 Programmable controller
System Manual, V4.2, 09/2016, A5E02486680-AK
987

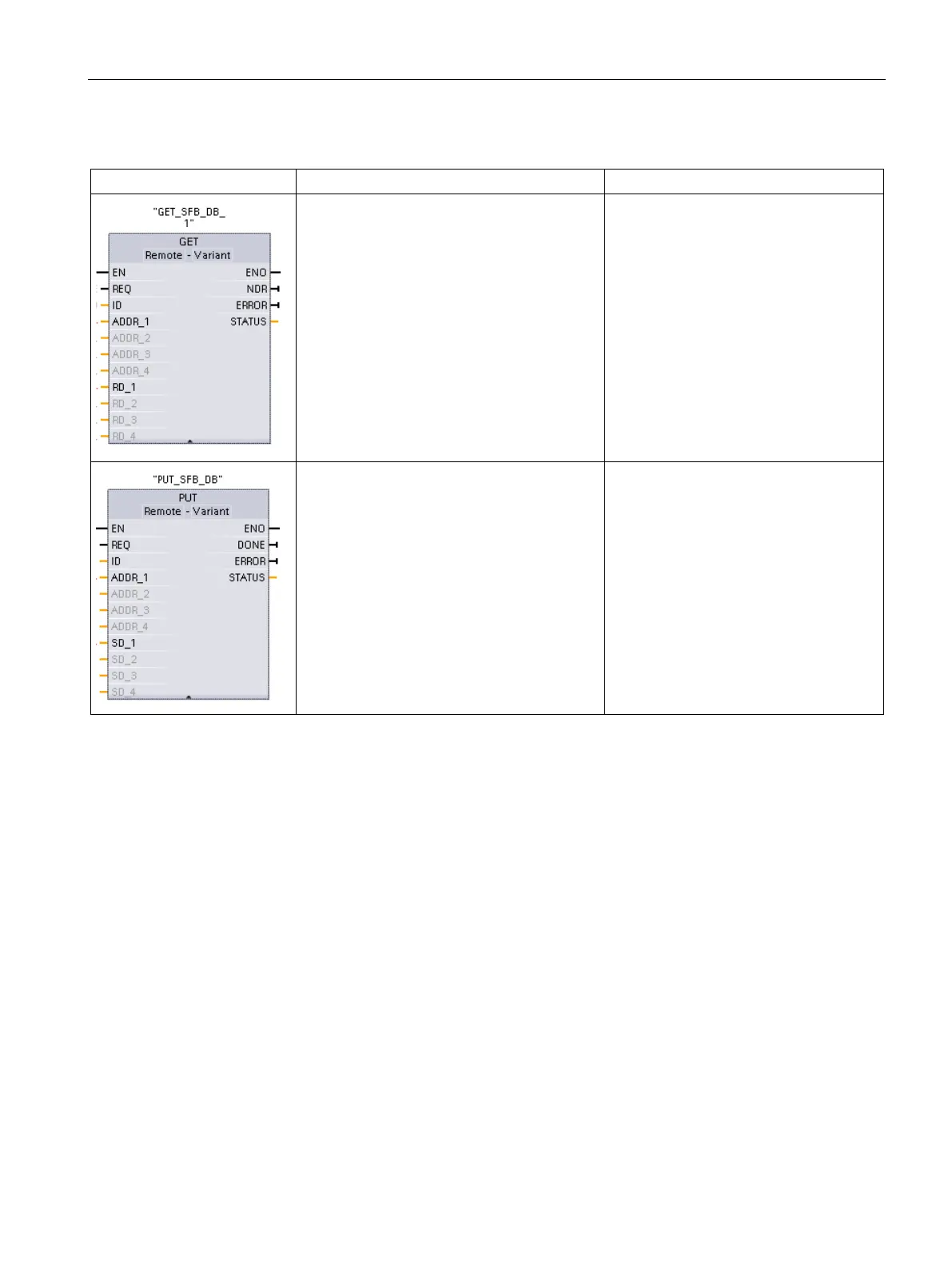

Table 11- 62 GET and PUT instructions
LAD / FBD
SCL
Description
"GET_DB"(
req:=_bool_in_,
ID:=_word_in_,
ndr=>_bool_out_,
error=>_bool_out_,
status=>_word_out_,
addr_1:=_remote_inout_,
[...addr_4:=_remote_inout_,]
rd_1:=_variant_inout_
[,...rd_4:=_variant_inout_]);
Use the GET instruction to read data from
a remote S7 CPU. The remote CPU can
be in either RUN or STOP mode.
STEP 7 automatically creates the DB
when you insert the instruction.
"PUT_DB"(
req:=_bool_in_,
ID:=_word_in_,
done=>_bool_out_,
error=>_bool_out_,
status=>_word_out_,
addr_1:=_remote_inout_,
[...addr_4:=_remote_inout_,]
sd_1:=_variant_inout_,
[....sd_4:=_variant_inout_]);
Use the PUT instruction to write data to a
remote S7 CPU. The remote CPU can be
in either RUN or STOP mode.
STEP 7 automatically creates the DB
when you insert the instruction.
