TP-Link T1600G-52PS Cli Reference Guide

5
3. Type in the User name and Password (the factory default value for both of them are admin)
and press the Enter button to enter User EXEC Mode , which is shown as Figure 1-2.

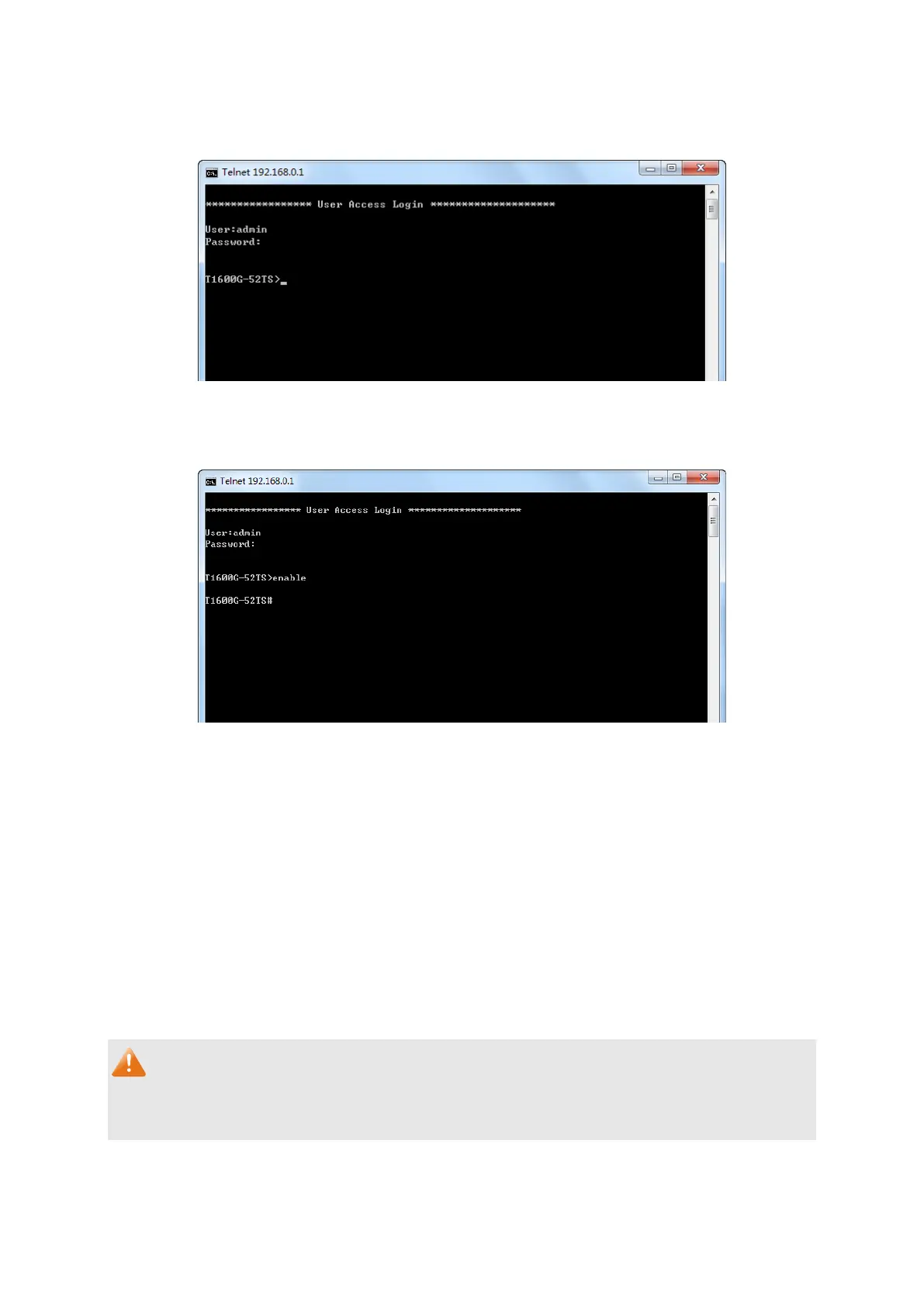

Figure 1-2 Log in the Switch
4. Type in enable command to enter Privileged EXEC Mode.
Figure 1-3 Enter into Priviledged EXEC Mode
1.1.2 Logon by SSH
To log on by SSH, a Putty client software is recommended. There are two authentication modes
to set up an SSH connection:
Password Authentication Mode: It requires username and password, which are both admin by
default.
Key Authentication Mode: It requires a public key for the switch and a private key for the SSH
client software. You can generate the public key and the private key through Putty Key
Generator.
Note:
Before SSH login, please follow the steps shown in Figure 1-4 to enable the SSH function
through Telnet connection.
