Xerox Phaser 6280 Service Manual

2-44 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation
Tray 3 - Optional 550-Sheet Feeder
Tray 3 Function
■ Tray 3 Side Guide (Left/Right)
The Left/Right Guide moves at a right angle to the paper transfer direction
to align the paper width.
■ Tray 3 Retard Roller
The Retard Roller and the Feed Roller (Pick Up Unit) pinch the paper to
feed.

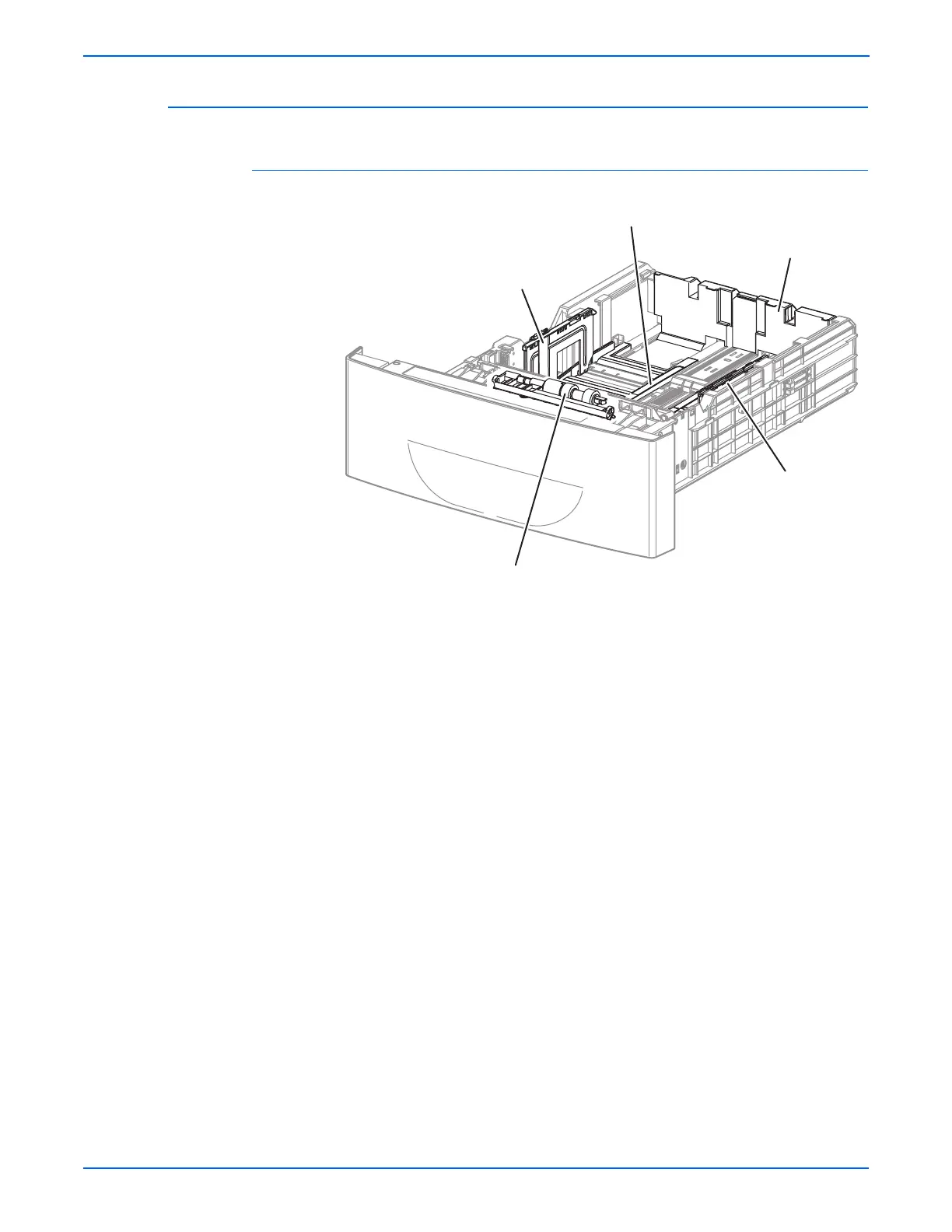

s6280-091
Bottom Plate
Tray 3 End Guide
Right Side Guide
Left Side Guide
Retard Roller
