Xerox Phaser 6280 - Parts List 12.2 Optional 550-Sheet Feeder - Tray 3 (2 of 5)

Phaser 6280 Color Laser Printer Service Manual 9-37
Parts List

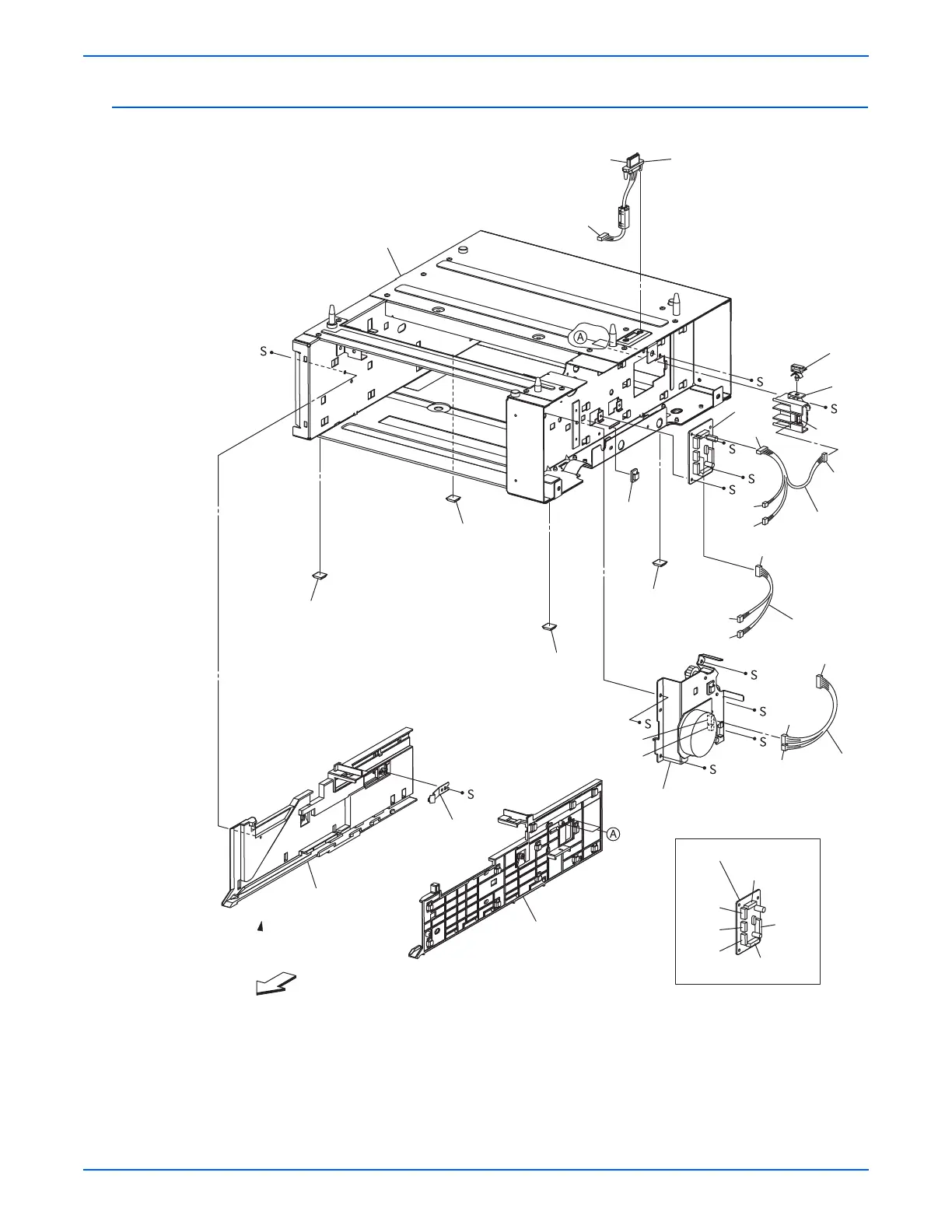

Parts List 12.2 Optional 550-Sheet Feeder - Tray 3 (2 of 5)
s6280-028
Front
1
3
5
6
7
8
11
10
9
18
17
13
15
15
15
15
16
12 (with 13,17)
(J421)
(P421)
(P423)
(P419)
(P1)
(P420)
(P422)
(J420)
(J422)
(J281)
(J419)
(J4222)
(P4222)
(P4221)
(J4221)
(J4211)
(P4211)
(P4213)
(P4212)
(P4202)
(P4201)
[Ref PL12.2.6]
