Xerox Phaser 6280 Service Manual

8-28 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

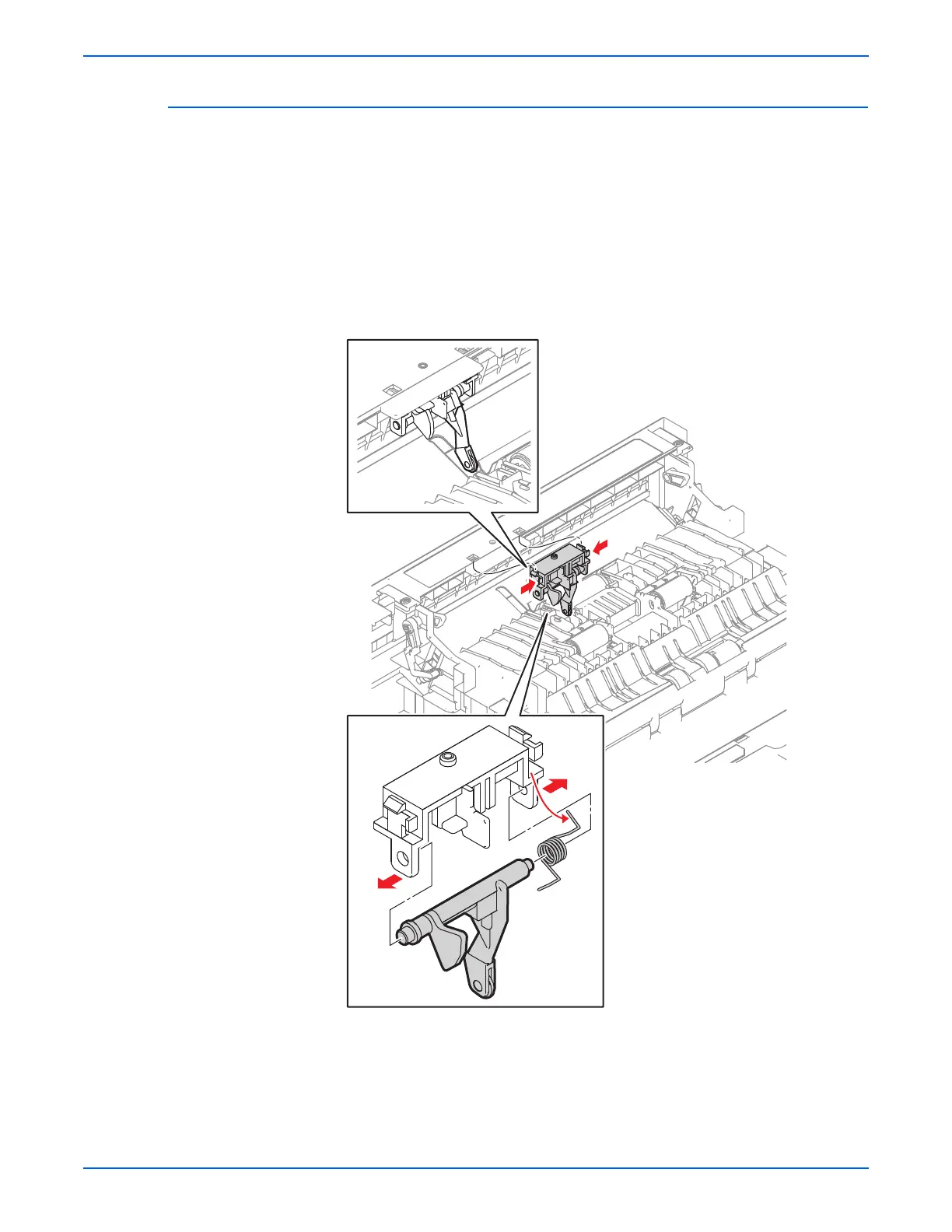

Tray 1 (MPT) No Paper Actuator (PL2.1.26)
1. Remove Tray 2.
2. Press on the notches of the Actuator Assembly (PL2.1.24) to release the
hooks.
3. Remove the No Paper Spring (PL2.1.28) from the Actuator Holder
(PL2.1.25).
4. Expand the left and right of the Actuator Holder mounting sections and
remove the Shaft.
5. Remove the No Paper Actuator together with the No Paper Spring.
6. Remove the No Paper Spring from the No Paper Actuator.
s6280-290
