Xerox Phaser 6280 Service Manual

8-34 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

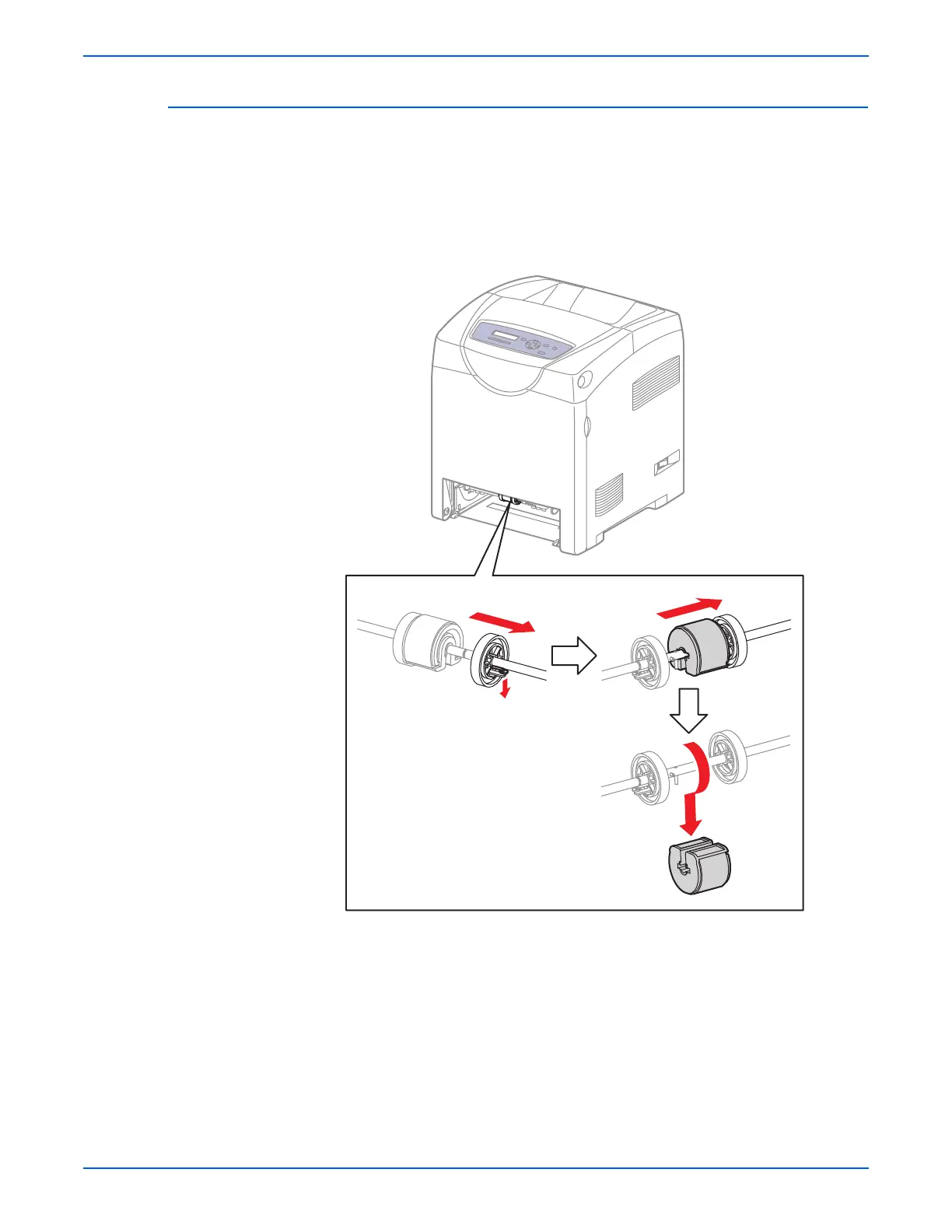

Tray 1 (MPT) Feed Roll (PL3.1.10, PL 3.1.99)
1. Remove Tray 2.
2. Release the MPT Core Roll hook (PL3.1.9) on the right side of the MPT
Feed Roll. Shift the MPT Core Roll to the right.
3. Shift the MPT Feed Roll to the right and remove the groove of the MPT
Feed Roll from the pin mounted on the Shaft (PL3.1.12).
4. Rotate the Tray 1 (MPT) Feed Roll 180° and remove it from the Shaft.
s6280-193

Xerox Phaser 6280 Specifications

General

Print Resolution	Up to 600 x 600 x 4 dpi
Processor	400 MHz
Operating System Compatibility	Windows, Mac OS, Linux
Print Technology	Laser
Monthly Duty Cycle	70, 000 pages
Memory	256 MB (standard)
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Legal, Letter
Maximum Paper Size	8.5 x 14 inches
