Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-41
Service Parts Disassembly
Feed Clutch (PL3.2.24)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the PH Drive Assembly (page 8-73).
4. Disconnect the Feed Clutch wiring harness connector P/J233.
5. Release the yellow Feed Clutch wiring harness from the clamp and the
hook on the printer frame.
6. Remove the E-ring securing the Feed Clutch to the Feeder Assembly
(PL3.2.1).
7. Remove the Feed Clutch from the Feeder Assembly.
Replacement Note
Replacement Note
Ensure to match the color of the Clutch Harness and the color of the
Clutch positioning rib. The Feed Clutch Harness is Yellow.

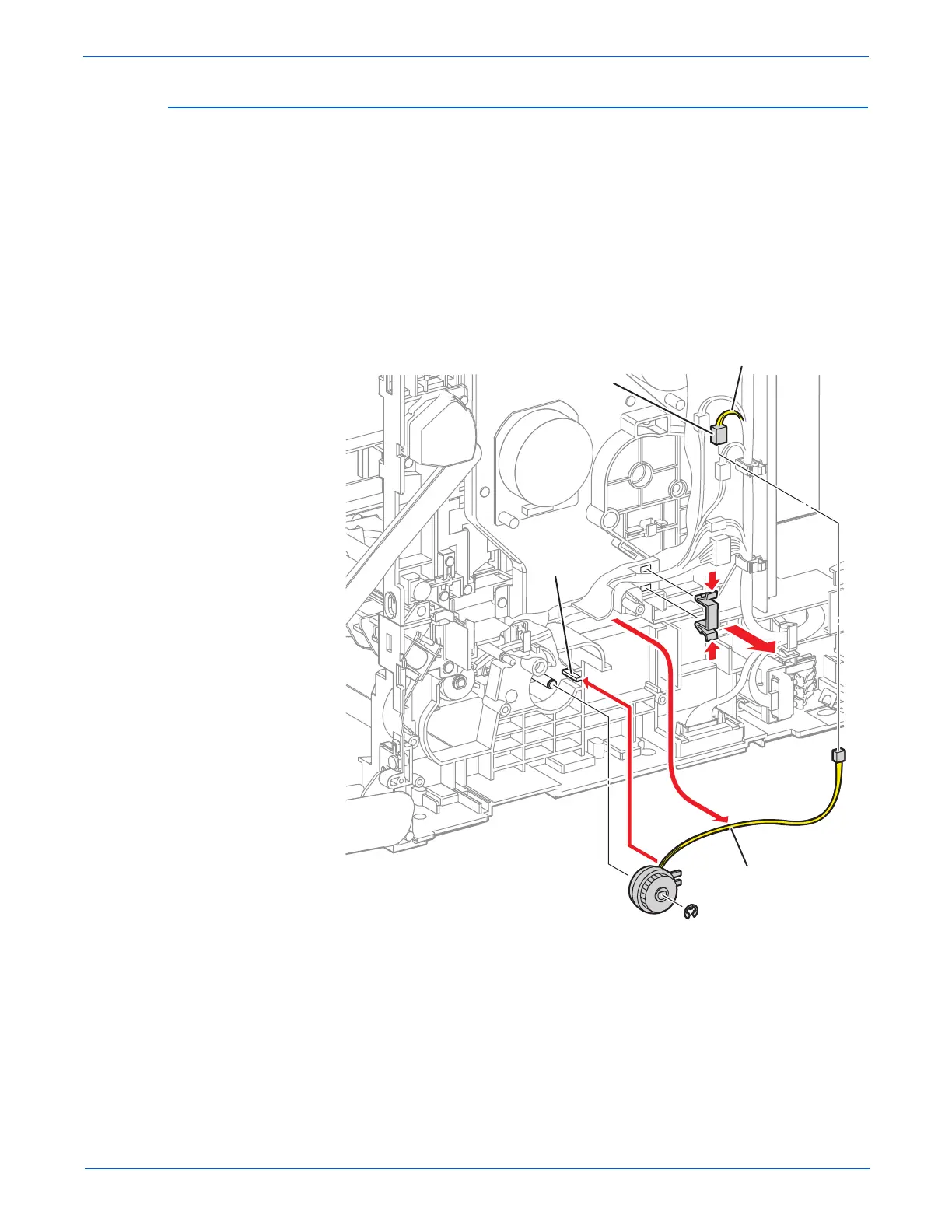

s6280-199
Yellow
Yellow
Yellow
P/J233
