Phaser 6280 Color Laser Printer Service Manual 8-45
Service Parts Disassembly
No Paper Sensor (PL3.2.30)

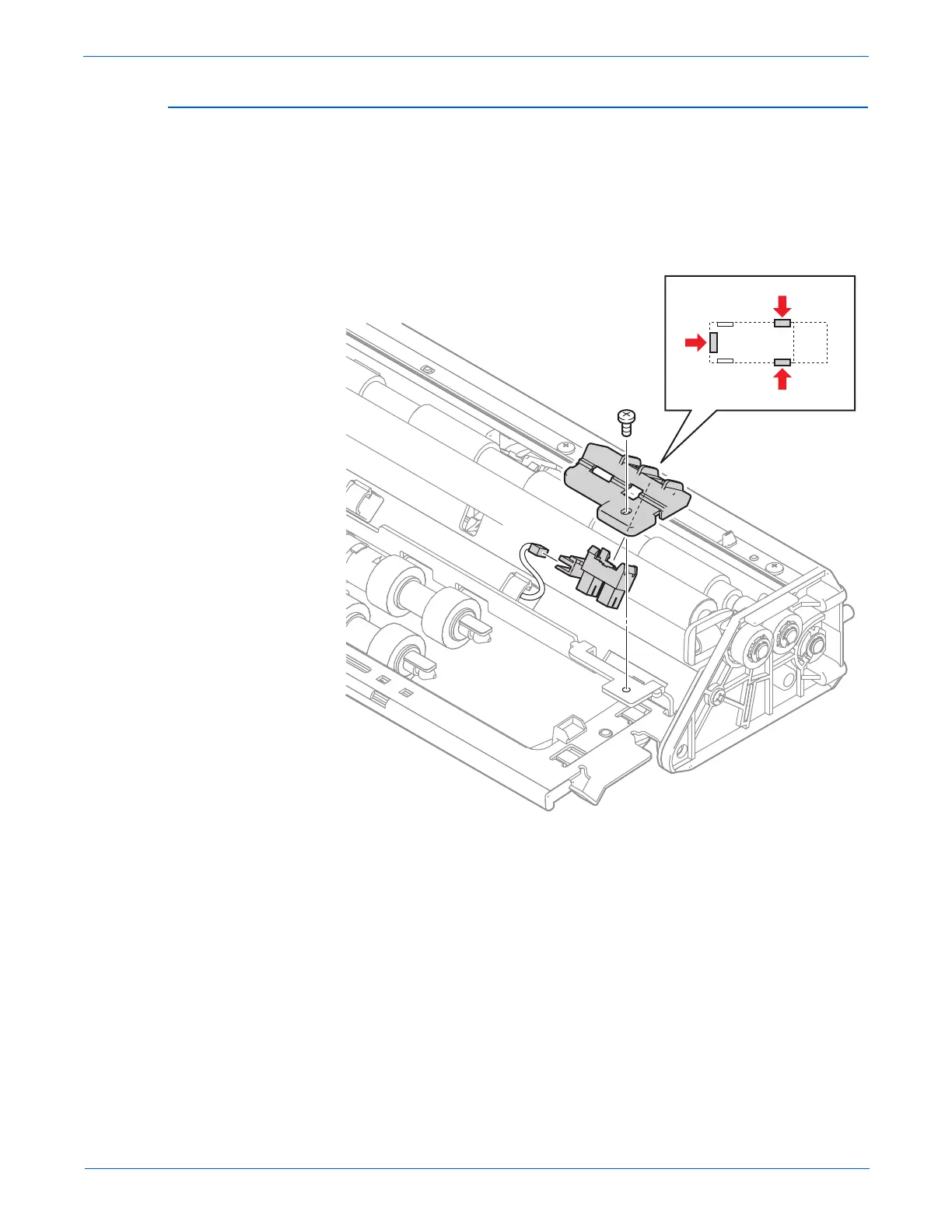

1. Remove the Feeder Assembly (page 8-36).
2. Remove 1 screw (8 mm) securing the No Sensor Holder (PL3.2.34) and
remove the No Sensor Holder.
3. Release the 3 hooks securing the No Paper Sensor to the No Sensor
Holder.
4. Disconnect the No Paper Sensor wiring harness connector P/J2921.
