Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-67
Service Parts Disassembly

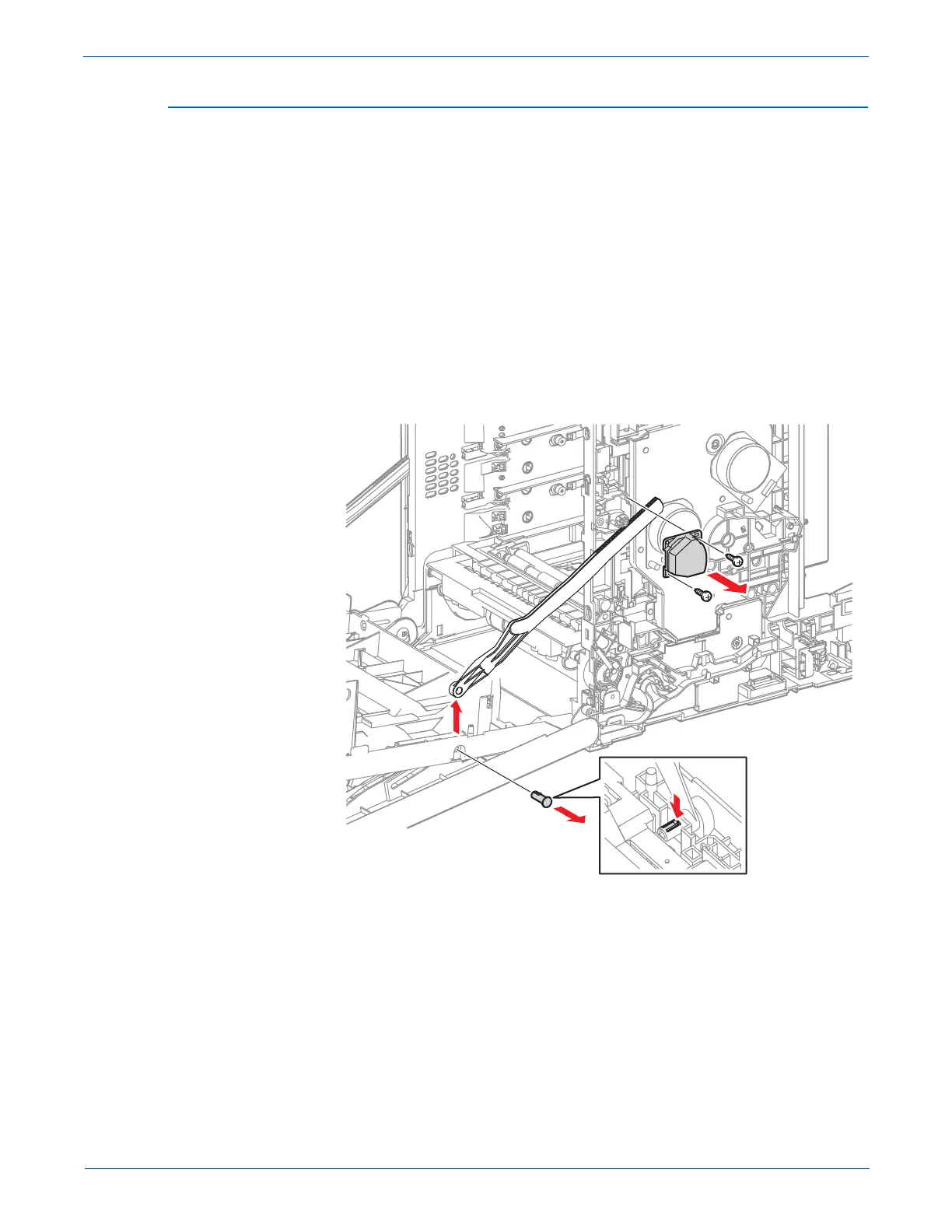

Right Link (PL7.1.13)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Release the hook of the Shaft Pivot (PL1.2.8) securing the Right Link. Pull
out the Shaft Pivot.
4. Remove the Right Link from the Front Cover.
5. Remove 2 screws (10 mm) securing the Right Support Link (PL7.1.12) to
the printer.
Caution
The Support Spring may come loose when removing the Right Support
Link. Cover the area with your hand in case the Support Spring comes
loose.
6. Remove the Right Support Link from the printer.
s6280-222
