Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 2-73
Theory of Operation
Optional 550-Sheet Feeder Drive

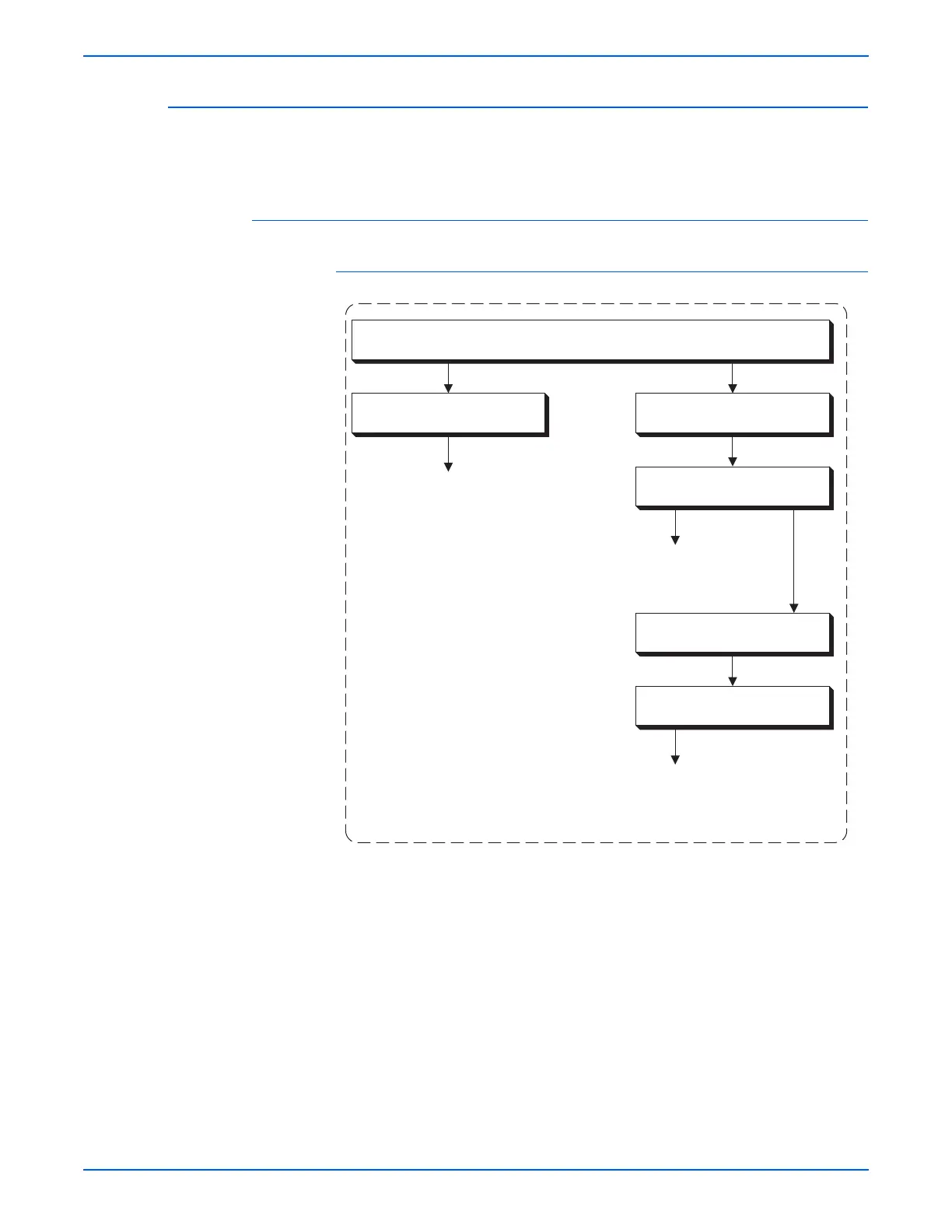

The following diagram provides the process flow of the Optional 550-Sheet
Feeder Drive.
Optional 550-Sheet Feeder
Process
s6280-115
Optional Feeder Drive Assembly
Optional Turn Clutch
[Turn Roller]
[Name of Moving Parts]
Optional Feeder Clutch
One way Nudger Clutch
[550 Tray Feed Roller]
Nudger Idler Gear
Nudger Roller Gear
[550 Tray Feed Roller]
550 Optional Feeder
