8-92 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

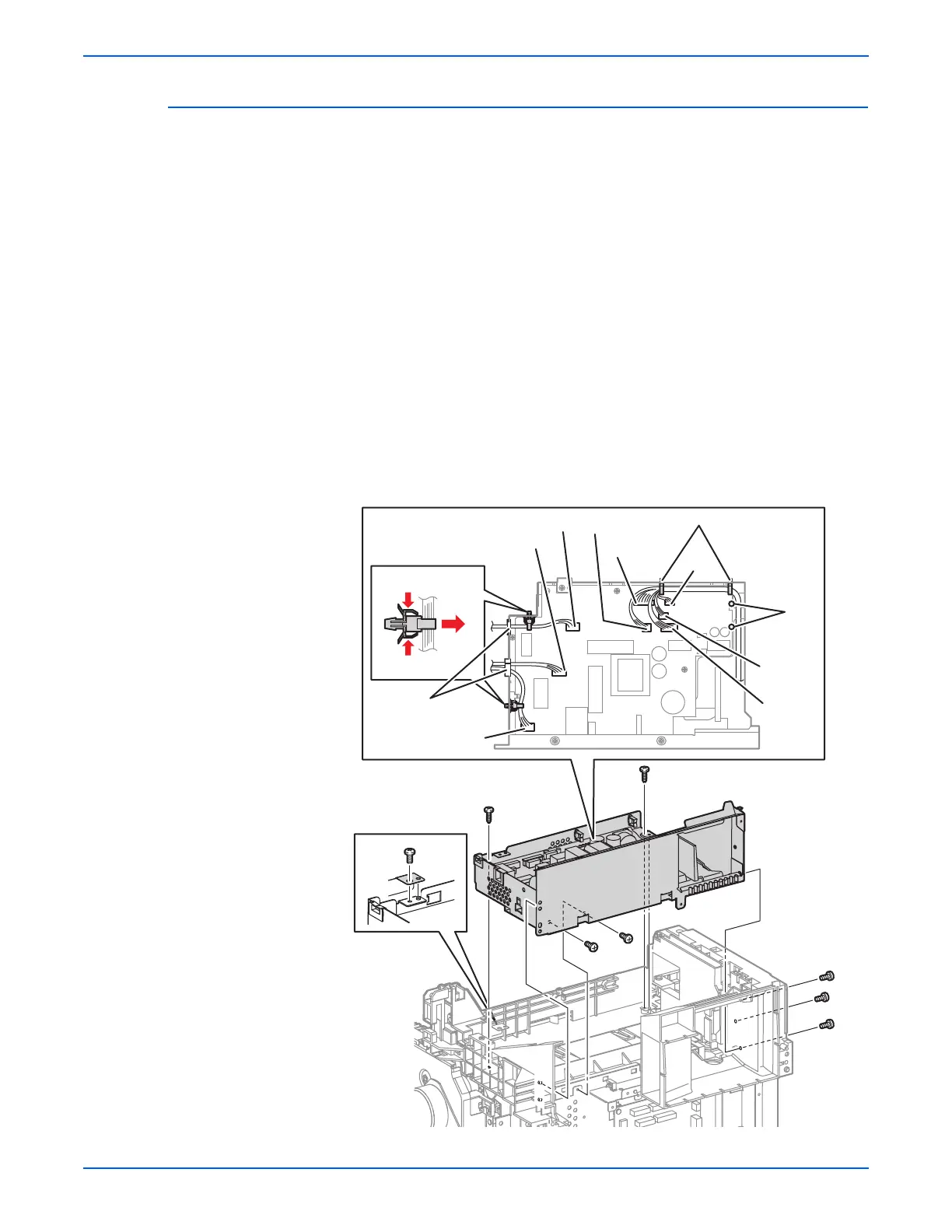

LVPS Assembly (PL9.1.40)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the Left Side Cover (page 8-14).
4. Remove the Top Cover (page 8-15).
5. Disconnect the 7 wiring harness connectors from the LVPS (PL9.1.4).
6. On the left side, from the LVPS Shield (PL9.1.9), remove the clamp
securing the Interlock Harness Assembly wiring harness (PL9.1.3) and
the clamp securing the AC In Harness Assembly wiring harness
(PL9.1.16).
7. Release the wiring harnesses from the 2 saddle clamps (left side of the
LVPS Assembly).
8. Release the wiring harnesses from the 2 clamps and the 2 wiring harness
holders (right side of the LVPS Assembly).
9. Remove 10 screws (six 6 mm, 4 tap 10 mm) securing the LVPS Assembly
to the printer.
10. Release the 3 holes of the LVPS Shield from the bosses of the printer.
11. Lift the LVPS Assembly up to remove it.
Clips
Clamps
(P44)
(P501)
(P502)
(P503)
(P40)
(P47)
(P48)
(P504)
Clamps
Saddle
Clamps
s6280-247
