Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-13
Service Parts Disassembly

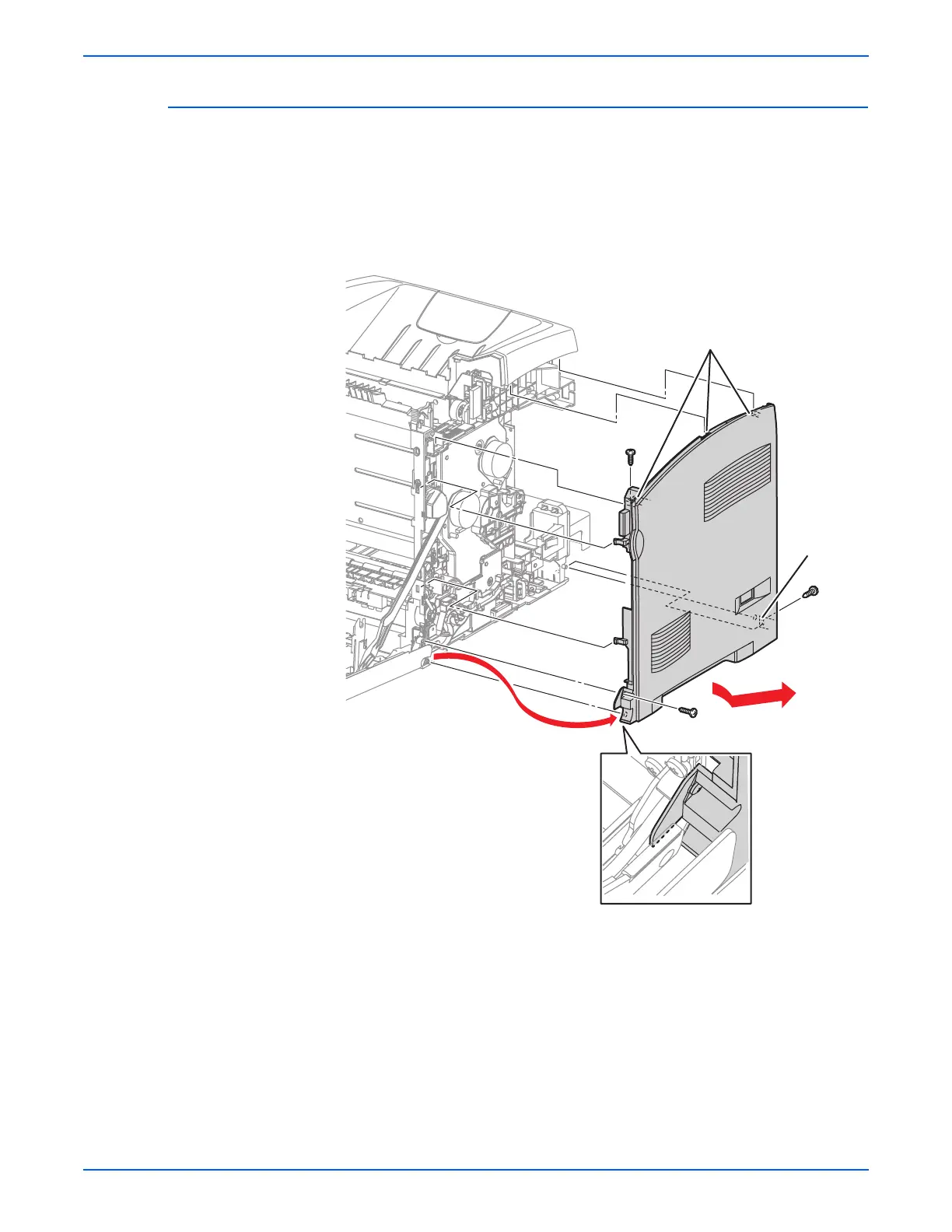

Right Side Cover (PL1.1.6)
1. Remove the Rear Cover (page 8-12).
2. Remove 3 screws (10 mm) securing the Right Side Cover.
3. Use a flat tip screwdriver to release the plastic tabs from the notches on
the top and rear sides of the printer frame.
4. Slide the Right Side Cover at an angle downward and toward the rear to
remove it.
Replacement Note
Replacement Note
Insert the top and bottom tabs of the Right Side Cover at an angle in
order to fit the Right Side Cover in the correct position.
s6280-173
Tabs
Tab
