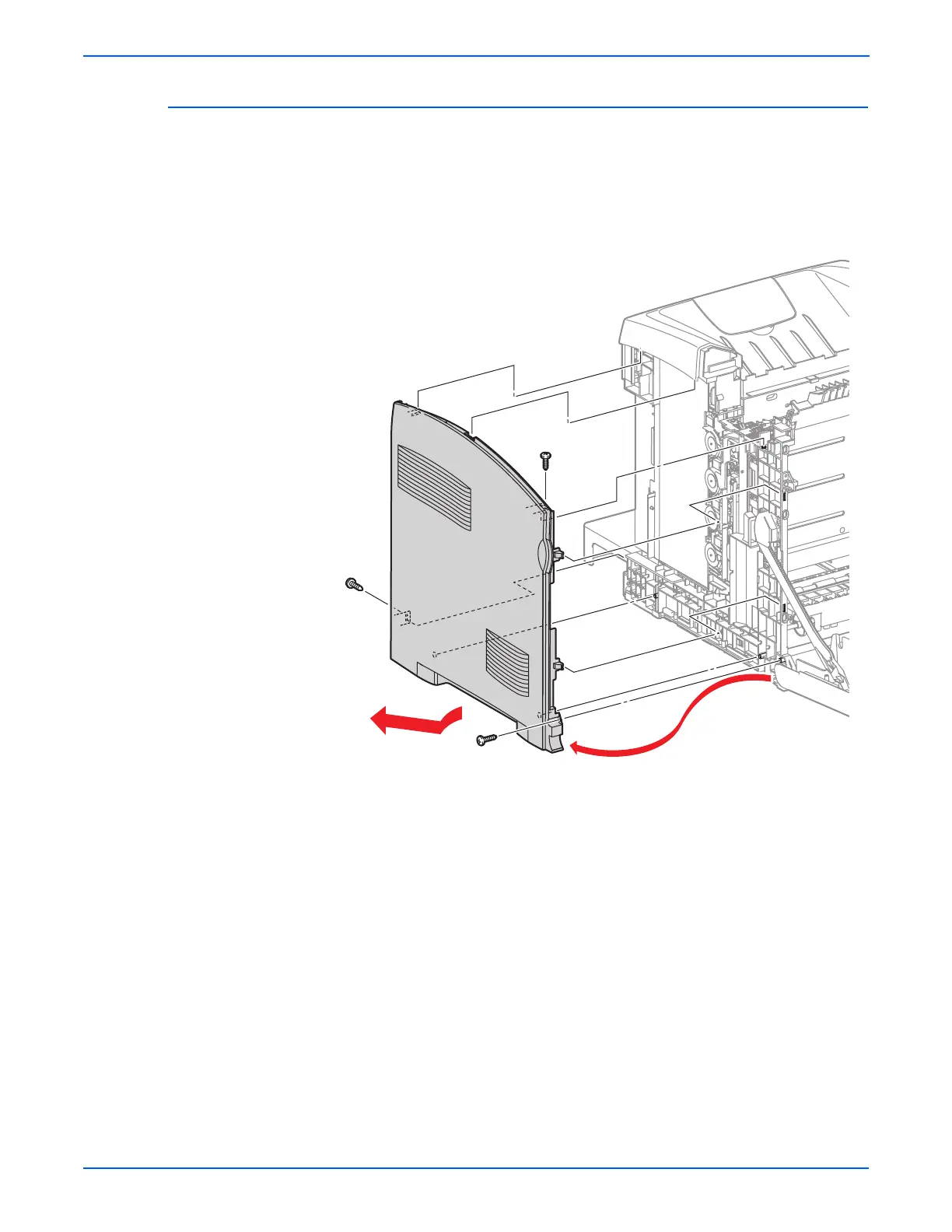

Left Side Cover (PL1.1.7)
1. Remove the Rear Cover (page 8-12).
2. Remove 3 screws (10 mm) securing the Left Side Cover.
3. Use a flat tip screwdriver to release the plastic tabs from the notches on
the top and rear sides of the printer frame.
4. Slide the Left Side Cover at an angle toward the rear to remove it.
Replacement Note
Replacement Note
Insert the top and bottom tabs of the Left Side Cover at an angle in
order to fit the Left Side Cover in the correct position.
s6280-174
