Phaser 6280 Color Laser Printer Service Manual 8-99
Service Parts Disassembly
Duplex Unit

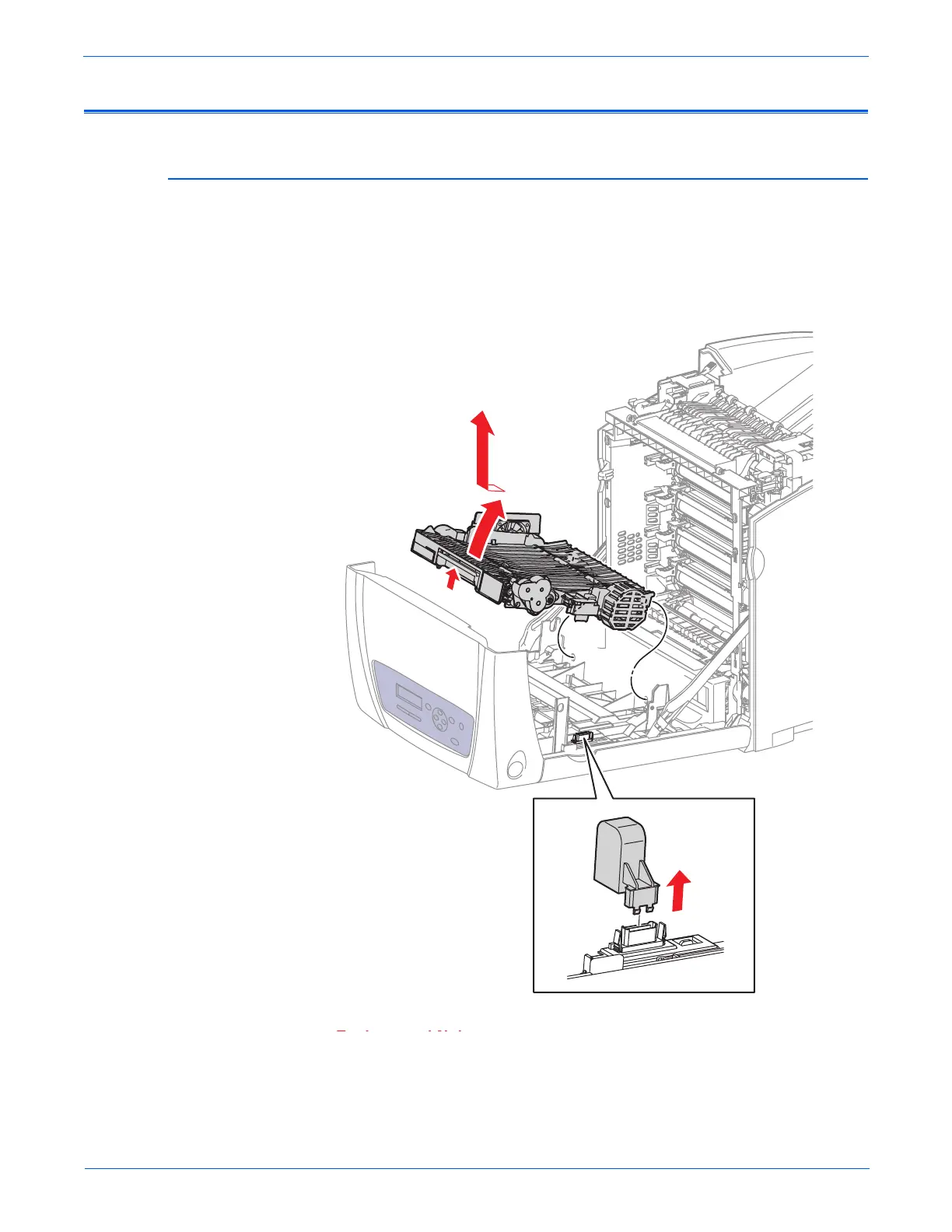

Duplex Unit (PL11.1.1)
1. Open the Front Cover.
2. Remove the Transfer Unit (page 8-8).
3. Lift the Duplex Unit lever to release the lock.
4. Pull the notches on the bottom of the Duplex Unit out from the holes of the
Front Cover and remove the Duplex Unit.
Replacement Note
Replacement Note
Ensure to remove the cover from the Duplex Unit connector location
(if installed). The cover is only installed if the printer never had a
Duplex Unit installed.
s6280-253
