Phaser 6280 Color Laser Printer Service Manual 8-47
Service Parts Disassembly

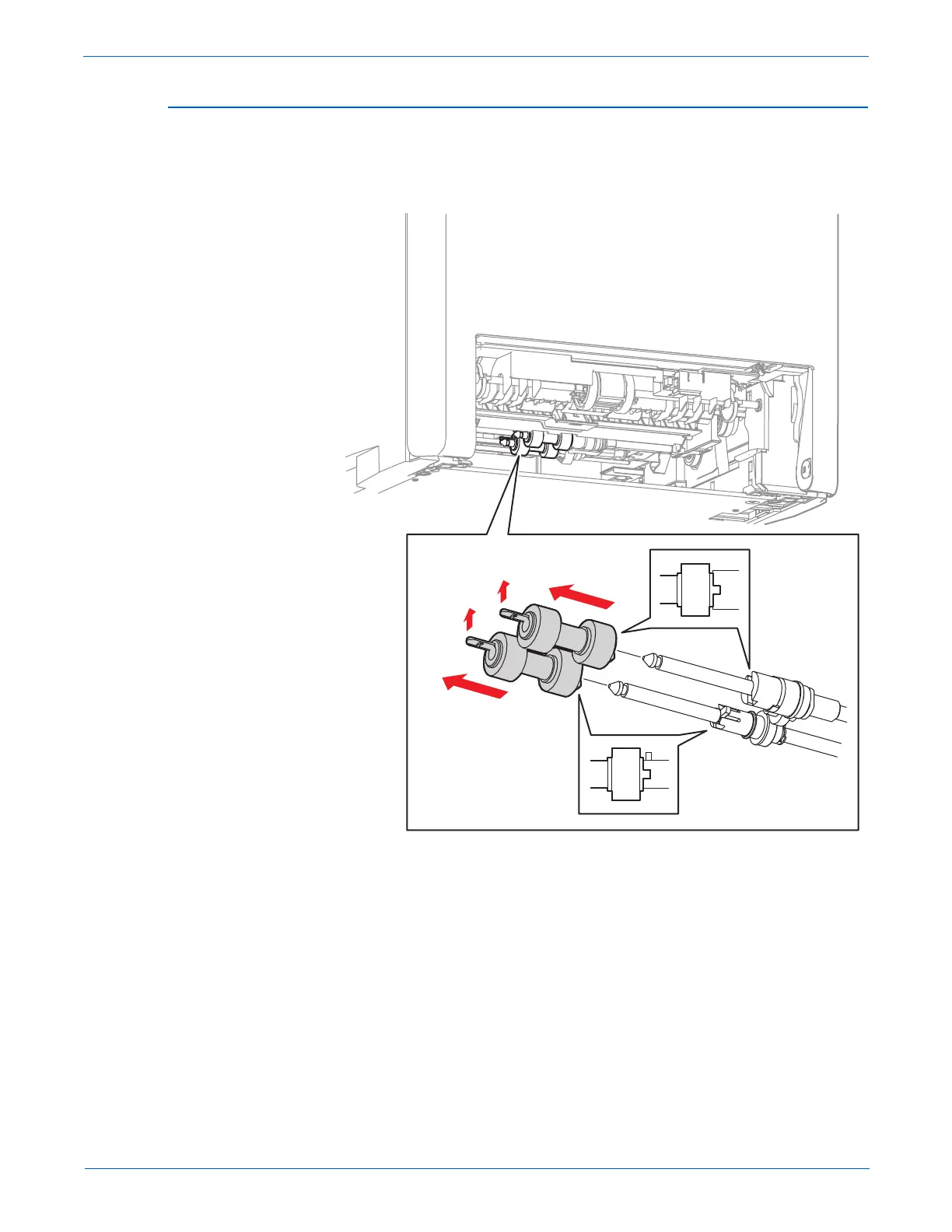

Tray 2 Feed Roll (PL3.2.53)
1. Remove Tray 2.
2. Release the hook on the Tray 2 Feed Roll hook and remove the Feed Roll
from each Shaft.
Ensure to align the convex section of the Tray 2 Feed Roll with the
concave section of the Nudger Roll Gear (PL3.2.46) and the Oneway
Feed Clutch (PL3.2.52).
