Xerox Phaser 6280 Service Manual

5-48 Phaser 6280 Color Laser Printer Service Manual
Print-Quality Troubleshooting
Skew
The printed image is not parallel with both sides of the paper.
Initial Actions
■ Check the paper transfer path.
■ Ensure there are no debris on the transfer path.
Troubleshooting Reference Table

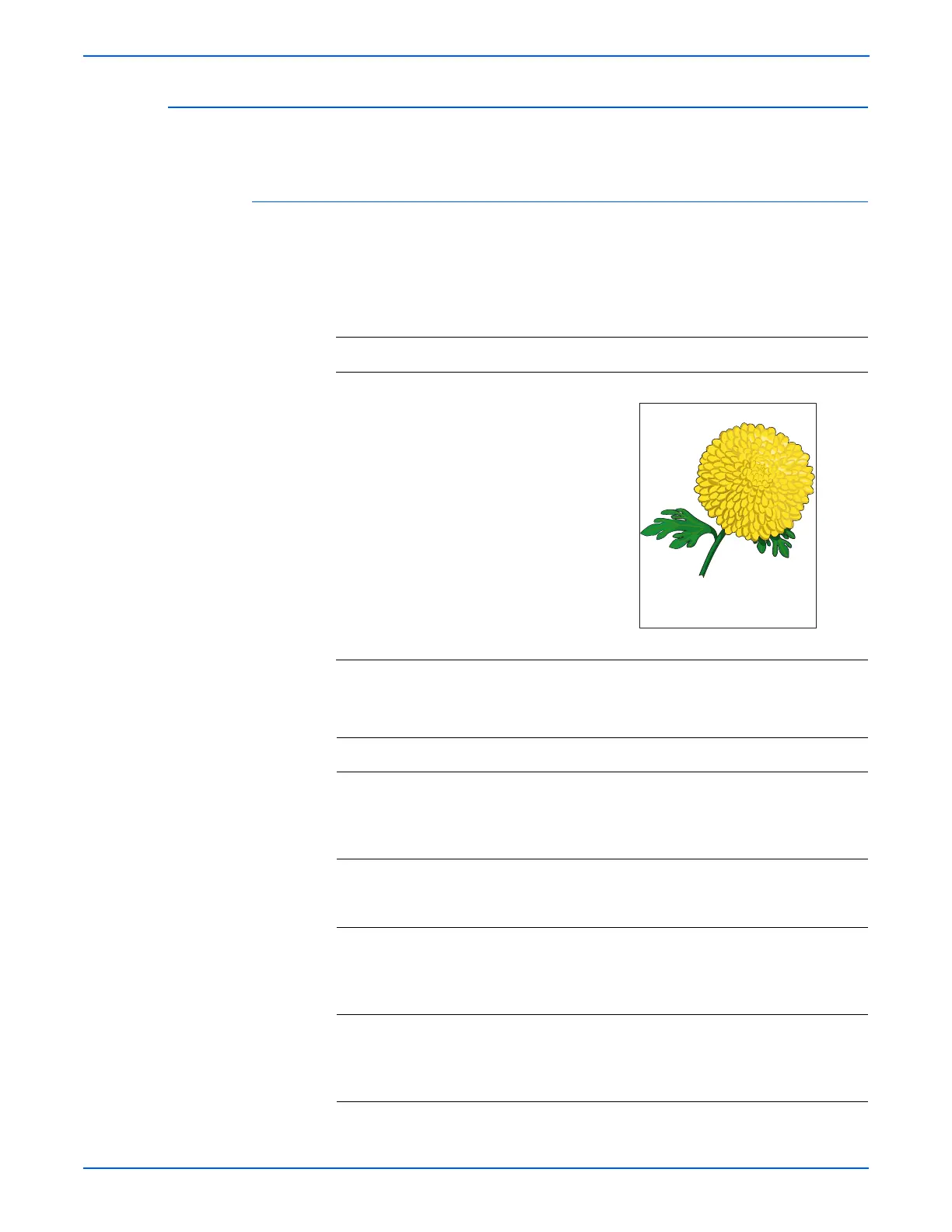

Applicable Notes Example Print
■ Tray 1 Retard (Separator) Roll Assy.,
PL2.1.3
■ Tray 2 Retard Roll, PL2.2.17
■ MPT Feed Roll, PL3.1.10
■ Feeder Assembly, PL3.2.1
■ Tray 2 Feed Roll (Nudger Roll),
PL3.2.53
■ Duplex Unit, PL11.1.1
■ Tray 3 Feed Roll (Nudger Roll),
PL12.3.29
■ Tray 3 Retard Roll, PL12.5.17
Troubleshooting Procedure Table
Step Action and Questions Yes No
1 1. Check the paper condition.
2.Is the paper dry, recommended
type, and loaded in the correct
position?
Go to step 2. Replace the
paper.
2 1. Check the Front Cover Latch. Open
and close the Front Cover.
2.Does the error still occur?
Go to step 3. Complete.
3 1. Check the Transfer Unit for correct
installation. Reseat the Transfer Unit
(page 8-8).
2.Does the error still occur?
Go to step 4. Complete.
4 1. Check the Print Cartridge (C/M/Y/K)
for correct installation. Reseat the
Print Cartridge (page 8-10).
2.Does the error still occur?
Go to step 5. Complete.
Skew 2
