8-70 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Drive
Main Drive Assembly (PL8.1.2)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the Left Side Cover (page 8-14).
4. Remove the Top Cover (page 8-15).
Note
When performing the following step, it is not necessary to disconnect the
K Drive Assembly wiring harness connector.
5. Remove the K Drive Assembly (page 8-76).
Note
When performing the following step, it is not necessary to disconnect the
Interlock Assembly Harness connector.

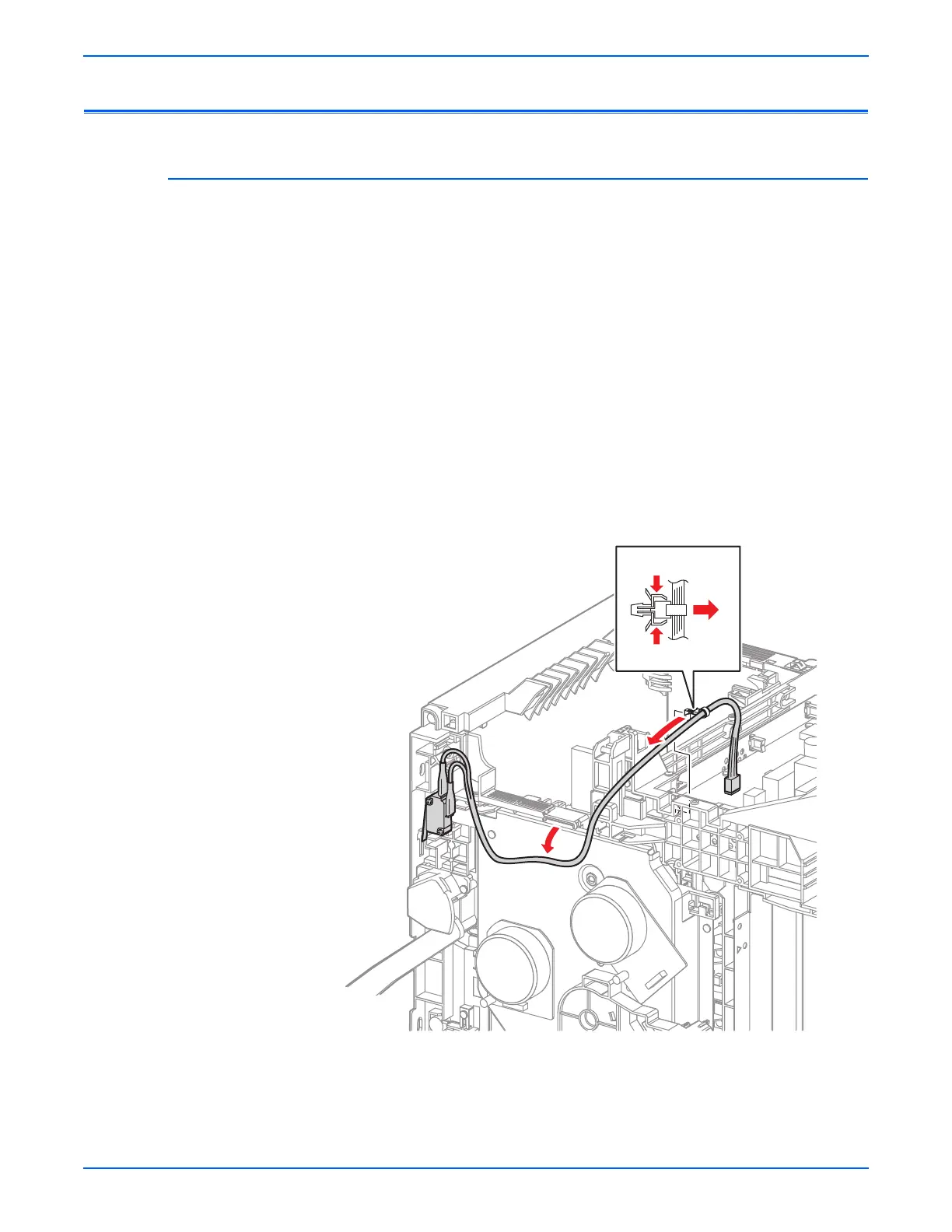

6. Release the Interlock Harness Assembly from the duct of the printer and
move the wiring harness away from the Main Drive Assembly.
s6280-233
