1-6 Phaser 6280 Color Laser Printer Service Manual
General Information

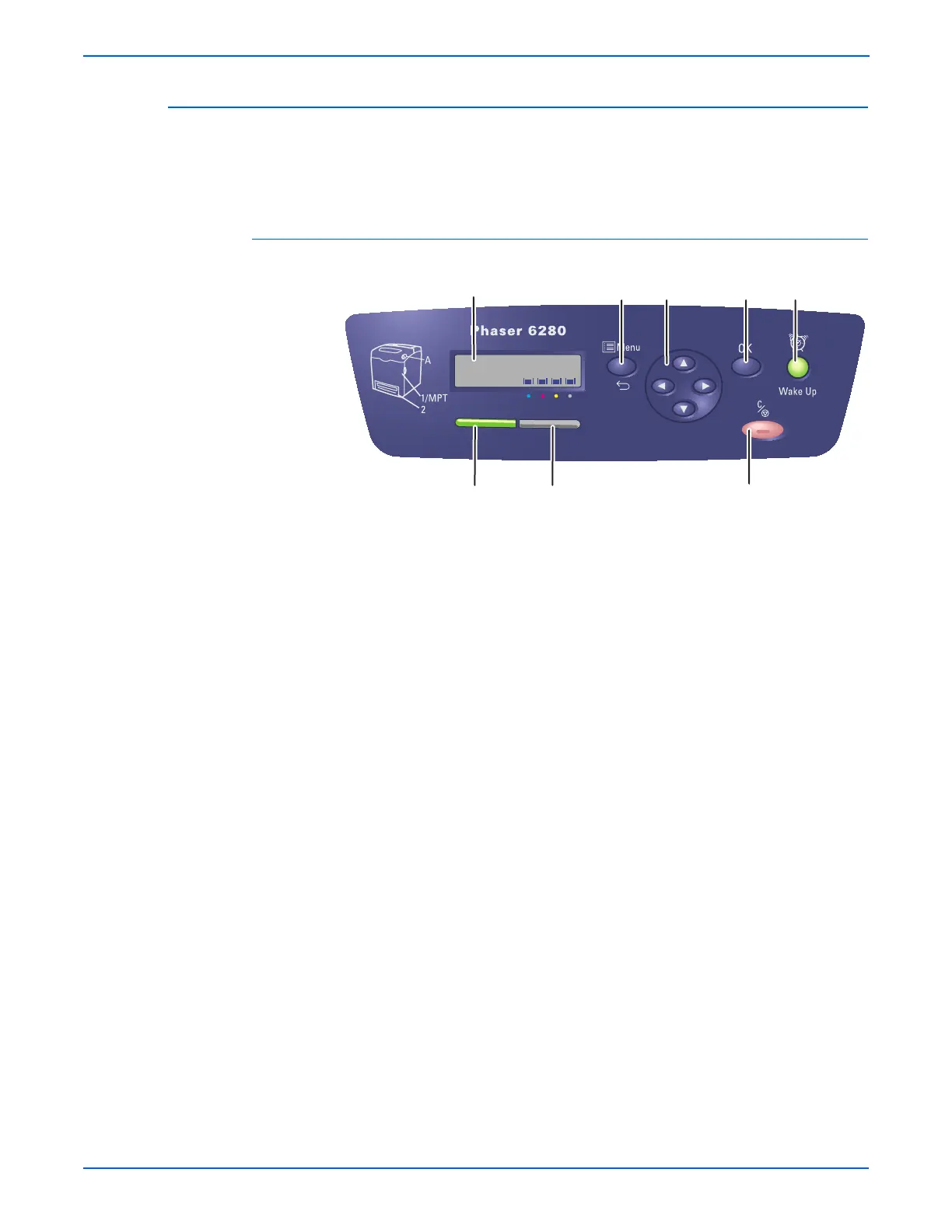

Control Panel
The Control Panel consists of 2 LEDs, 1 display window, and 8 functional
buttons. These buttons are used to navigate the menu system, perform
functions, and select modes of operation for the printer.
Control Panel Button Descriptions
1. Ready LED (Power/Status) LED On - Ready to print or processing print
job.
LED blinking - The printer is receiving data.
LED Off - An error has occurred and the
printer is offline or in Sleep mode.
2. Error LED Light On - Error with print job.
(blinking = not user fixable)
(On solid = user fixable)
3. Graphic Control Panel Display Displays printer settings, status, and
messages.
4. Menu Button Changes display between Menu mode and
Print mode.
5. 4 Way Cursor Buttons Moves between the Menu levels.
Up and Down arrows Switches between Menus or Items on the
same level.
Right and Left arrows Switches between the Menu levels.
6. Cancel Button Cancels the current print job.
7. OK Button Move to the next level, confirm setting, and
print report.
8. Wake Up LED/Button LED comes On when the printer is in Power
Saver Mode. Press this button to exit the
Power Saver Mode.
Ready
C M Y K
1 2
3
4 5 7 8
6
s6280-035
