Xerox Phaser 6280 Service Manual

8-52 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
CRUM Connector (PL5.1.3)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the Left Side Cover (page 8-14).
4. Remove the Top Cover (page 8-15).
5. Remove the Interlock Harness Assembly (page 8-79).
6. Remove the K Drive Assembly (page 8-76).
7. Remove the Main Drive Assembly (page 8-70).
8. Remove the Laser Unit (page 8-50).
9. Remove the Print Cartridge Sensor Assembly (page 8-54).

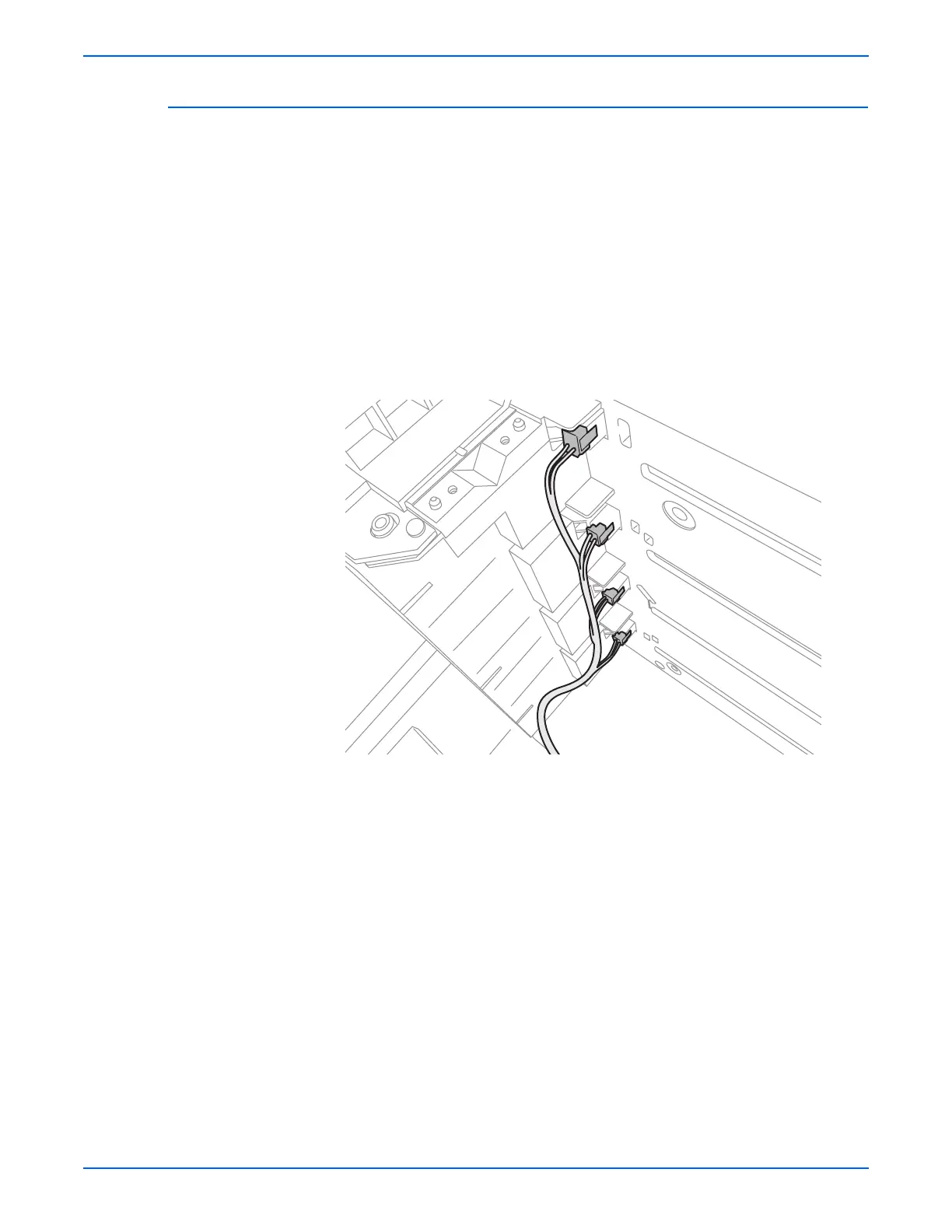

10. From the inside of the printer, disconnect the CRUM Connector wiring
harness connector.
s6280-291
