Xerox Phaser 6280 - Memory Card (PL9.1.30)

Phaser 6280 Color Laser Printer Service Manual 8-91
Service Parts Disassembly
Memory Card (PL9.1.30)

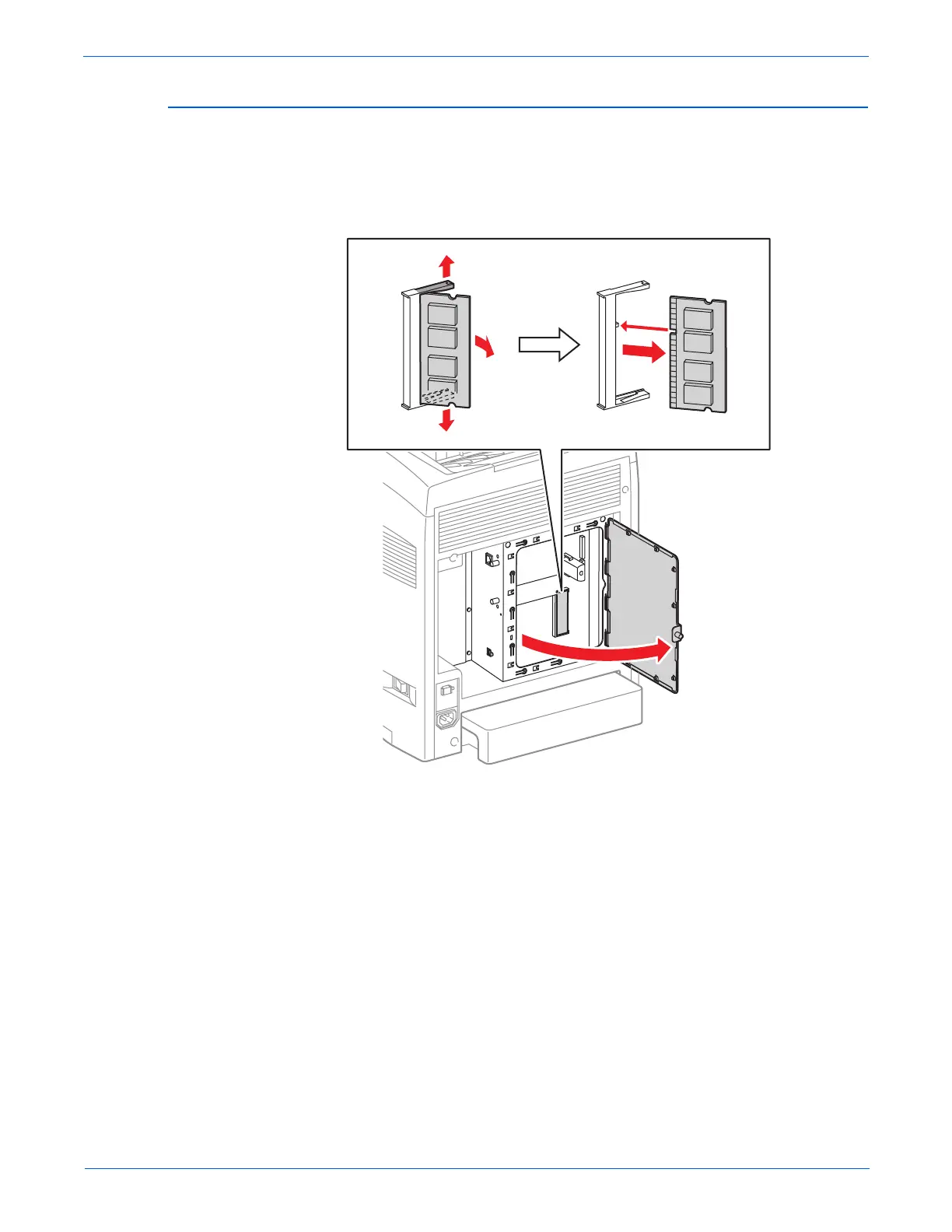

1. Loosen the Knurling Screw (PL9.1.44) and open the Window Shield
(PL9.1.21).
2. Release the tabs on the memory socket securing the Memory Card.
3. Remove the Memory Card.
s6280-246
