Phaser 6280 Color Laser Printer Service Manual 2-61
Theory of Operation
Main Drive Assembly
The Main Drive transmits power for Black and White, Full Color, and Simplex
modes as shown in the following diagrams.

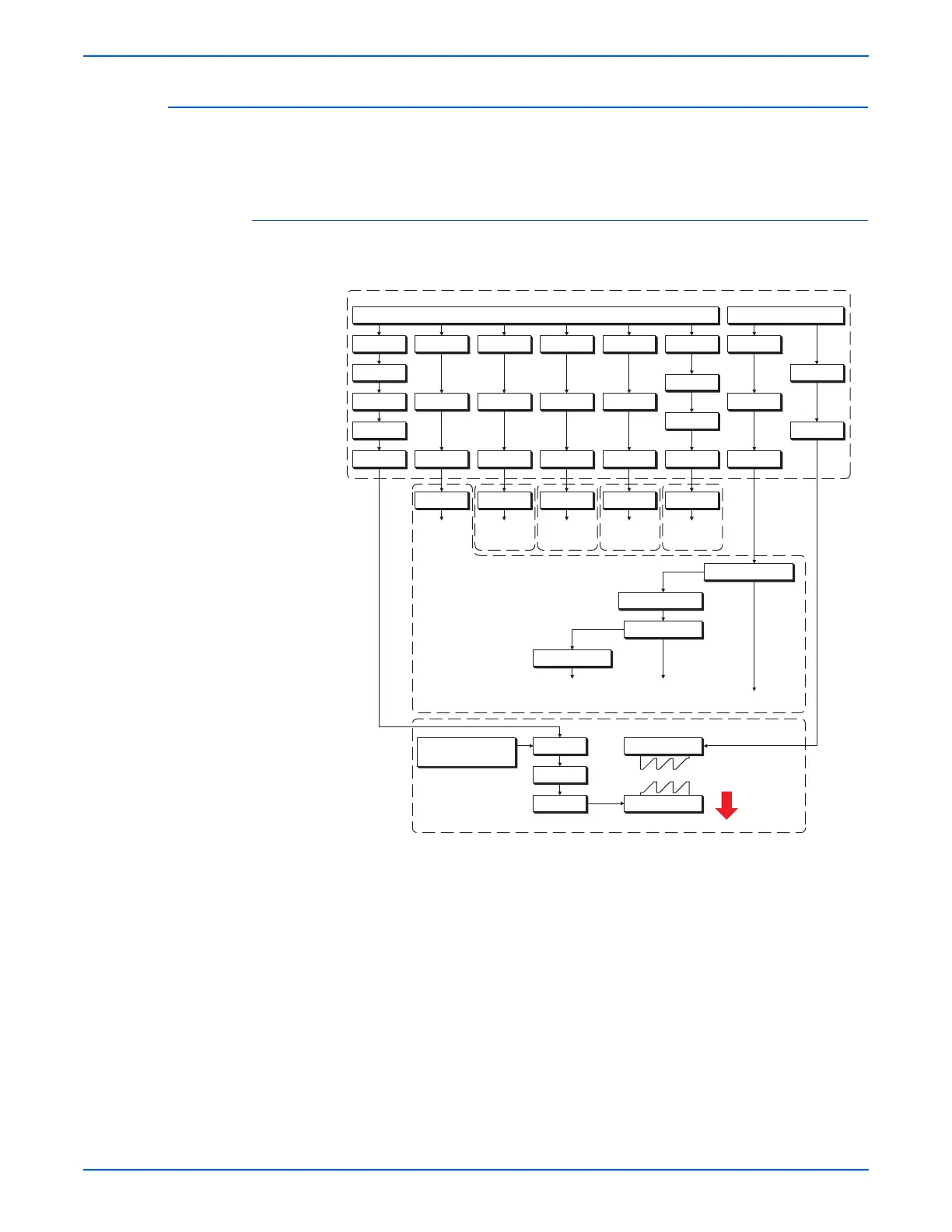

Main Drive Assembly (Black and White Mode)
s6280-103
Sub Motor
Black And White Mode
Main Motor
[ Name Of Moving Parts ]
Gear X1
Gear X1 (K)
Gear X2 (K)
Gear X1 (C)
Gear X2 (C)
Gear X1 (M)
Gear X2 (M)
Gear X1 (Y)
Gear X2 (Y)
Gear T1
Gear T2
Gear T3
Gear T4
Gear D7
Gear D8
Gear D1
Gear D2
Gear X2
Gear K1
Gear X3 (K)
Gear X3 (C)
Gear X3 (M)
Gear X3 (Y)
Drive Gear
Drum Gear (K)
Drum Gear (C)
Drum Gear (M)
Drum Gear (Y)
Gear D5
Gear K3
Gear K2
[ Drum (K) ] [ Drum (C) ]
Cartridge
Assy (C)
[ Drum (M) ]
Cartridge
Assy (M)
[ Drum (Y) ]
Cartridge
Assy (Y)
[ Belt ]
Transfer Assy
Mag Roller Gear (K)
[ Deve Magnet Roller (K) ]
Deve Idle Gear (K)
Auger Gear (K)
Auger Gear (K)
[ Supply Gear (K) ]
[ Admix Gear (K) ]
Cartridge Assembly (K)
Gear C
Cam C
Flange D3
Drive Assembly (K)
K Mode
Switching Solenoid
Gear D3 In
Gear D3 Out
To Next Page
