Xerox Phaser 6280 - MCU Board (PL9.1.20)

8-86 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
MCU Board (PL9.1.20)
Note
If the MCU Board is exchanged, store internal data to the Image
Processor Board. Enter Service Diagnostics menu: Service Mode >
Engine Diag > NVM Settings > Save NVM to ESS. Refer to
”Service
Diagnostics” on page 4-5 for detailed procedures.
1. Remove the Rear Cover (page 8-12).
2. Remove the I/P Board Shield Assembly (page 8-96).
3. Remove the MCU Board Shield (page 8-94).
4. Disconnect the 20 wiring harness connectors on the MCU Board.
5. Remove 6 screws (6 mm) securing the MCU Board to the printer.
6. Remove the MCU Board from the printer.
Replacement Note
Replacement Note
If the MCU Board is exchanged, simply move the NVRAM chip from
the old MCU Board to the new MCU Board.

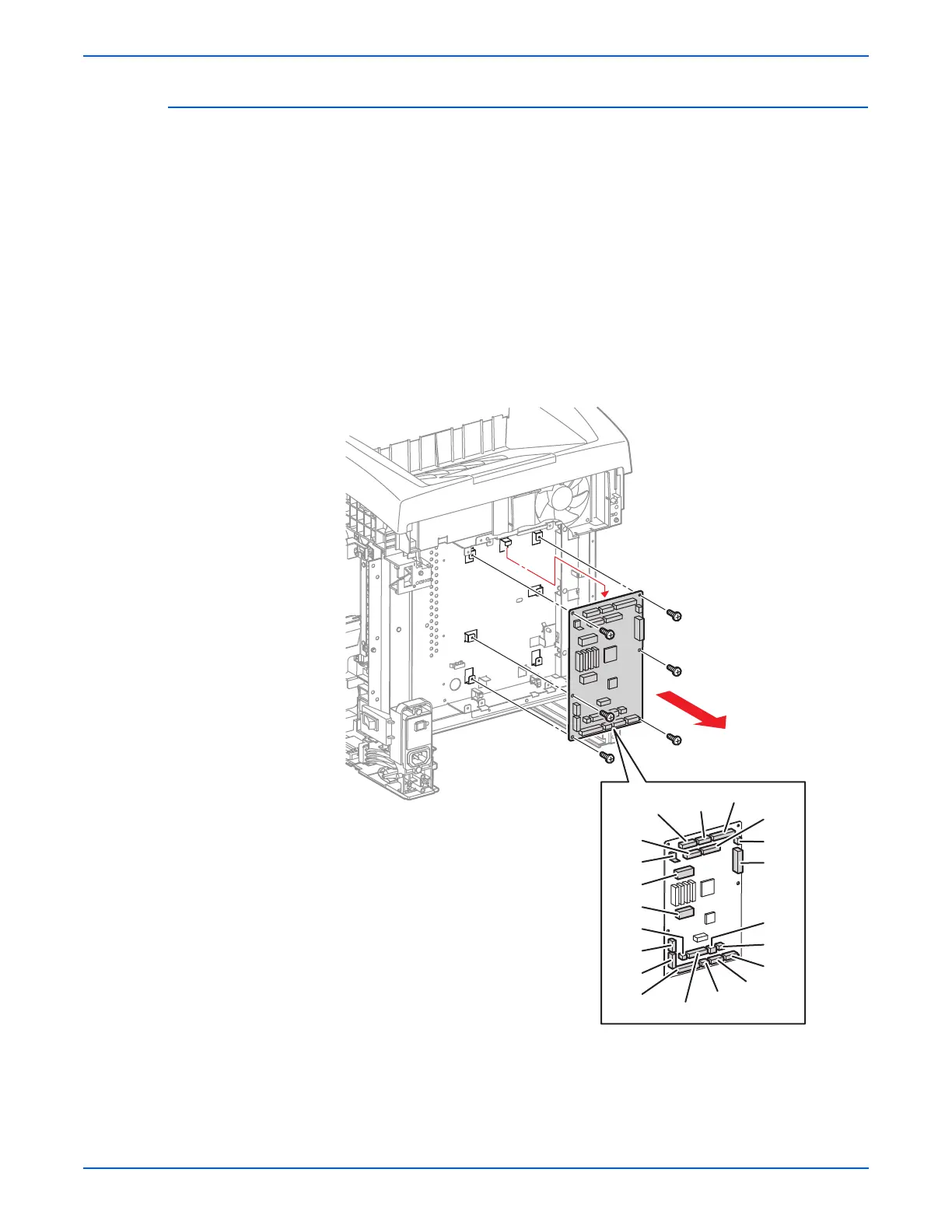

s6280-241
