Phaser 6280 Color Laser Printer Service Manual 8-61
Service Parts Disassembly
HVPS (PL5.1.17)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove Left Side Cover (page 8-14).
4. Remove the Top Cover (page 8-15).
5. Remove the Main Fan (page 8-82).
6. Remove the I/P Board Shield (page 8-96).
7. Remove the MCU Board Shield (page 8-94).

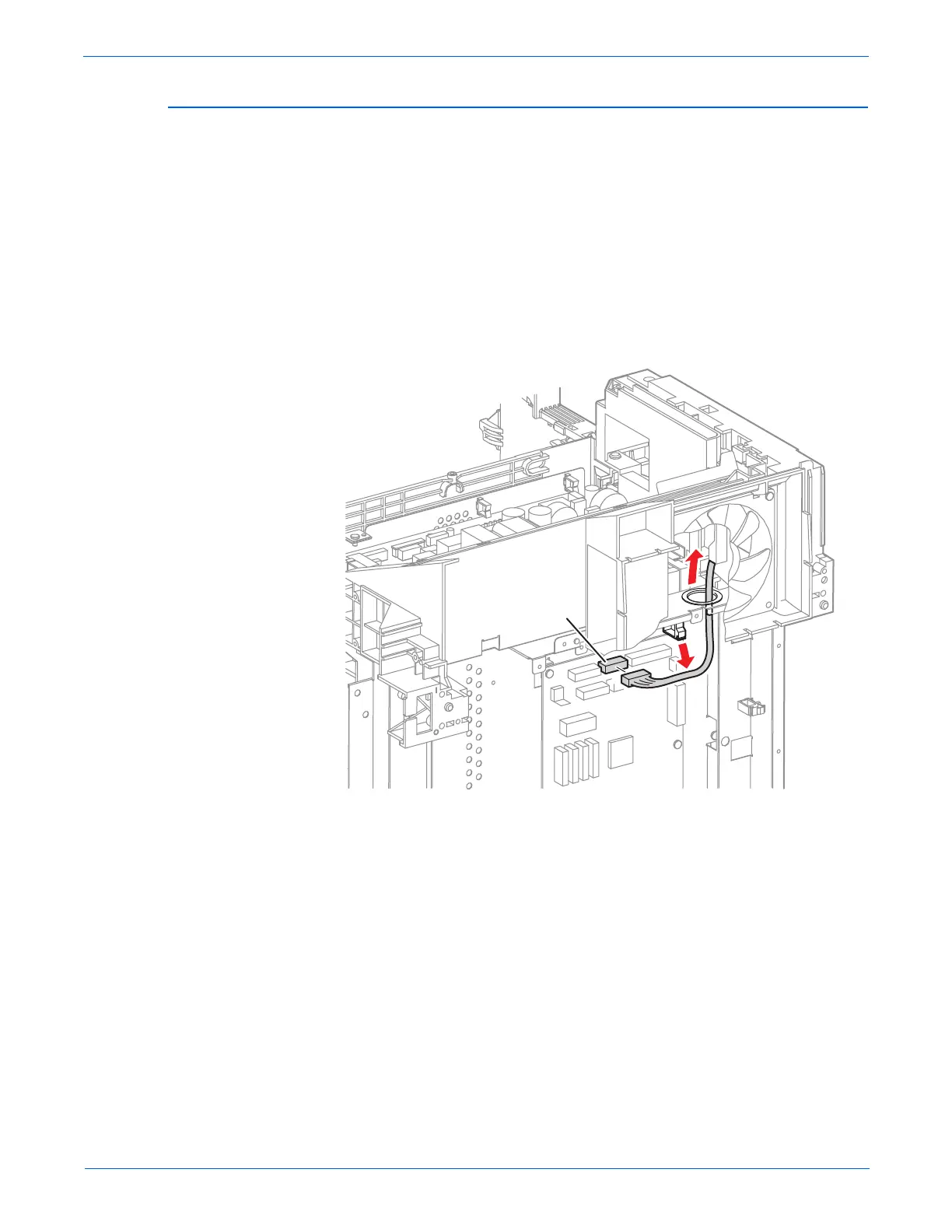

8. Disconnect the HVPS wiring harness connector P/J16 on the MCU Board
(PL9.1.20). Pass the wiring harness connector through the hole of the
Rear Shield (PL9.1.11).
s6280-215
P/J16
