8-62 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

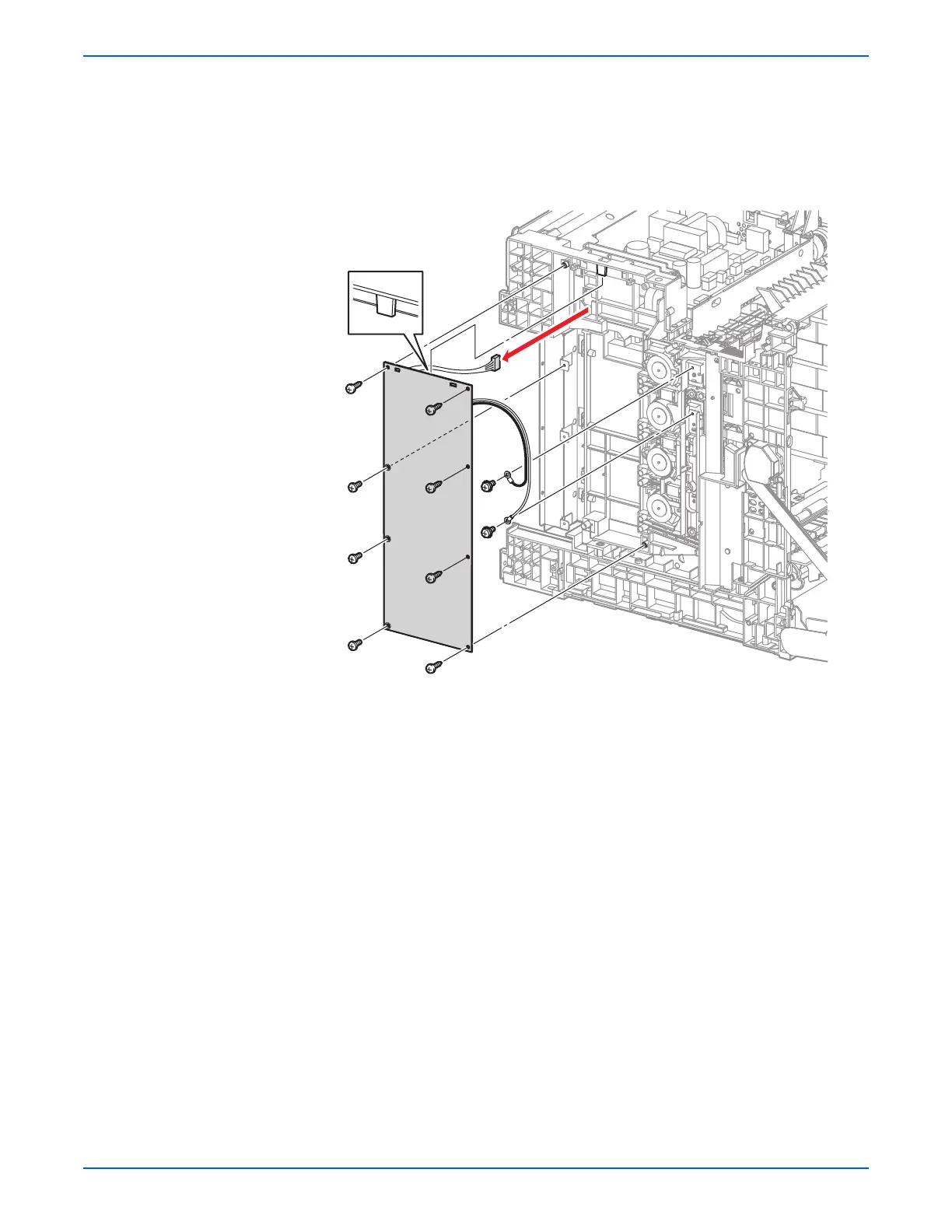

9. Remove 2 screws (6 mm, with washer) securing the HVPS wiring
harnesses.
10. Remove 5 screws (10 mm) and 3 screws (6 mm) securing the HVPS to
the printer.
11. Shift the upper part of the HVPS from the printer, pull out the connector
through the hole of the printer, and remove the HVPS.
