Xerox Phaser 6280 - Paper Tray; Tray 1 (MPT) Retard Roller Assembly (PL2.1.3)

8-26 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Paper Tray
Tray 1 (MPT) Retard Roller Assembly (PL2.1.3)
1. Remove Tray 2.

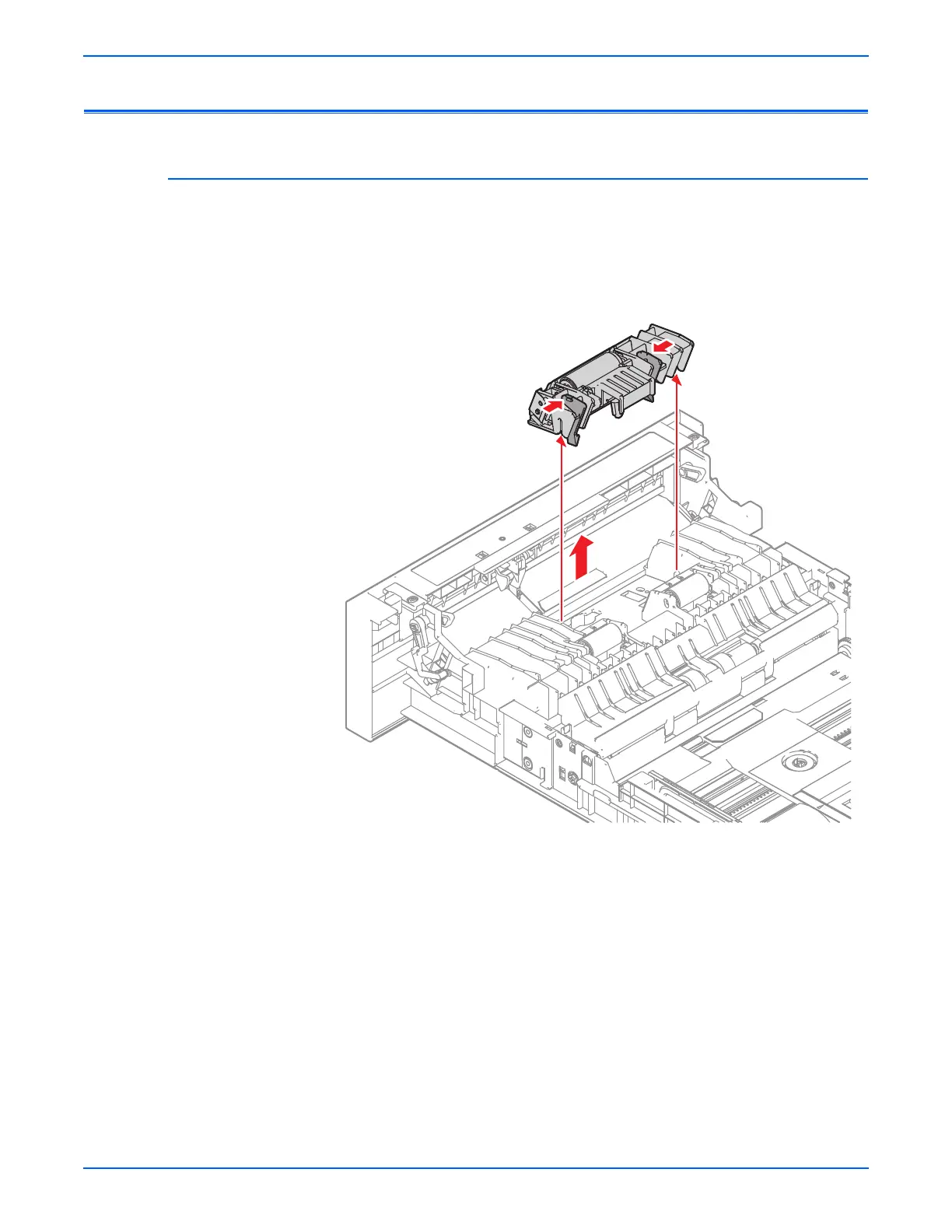

2. Press lightly on the left and right sides of the Separator Holder (PL2.1.10)
toward the center, lift and remove the Holder.
3. Remove the Tray 1 (MPT) Retard Roller Assembly from the Tray Housing
Base.
s6280-186
