8-4 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Preparation
Many parts are secured by plastic tabs. DO NOT over flex or force these
parts. DO NOT over torque the screws threaded into plastic parts.
Unplug the AC power cord from the wall outlet before removing any
printer part.
Before you begin any removal and replacement procedure:
1. Wear an Electrostatic Discharge wrist strap to help prevent damaging to
the sensitive electronics of the printer circuit boards.
2. Turn off the printer power and disconnect the power cord from the wall
outlet.
3. Disconnect all computer interface cables from the printer.
4. Remove Tray 2.
5. Open the Front Cover.

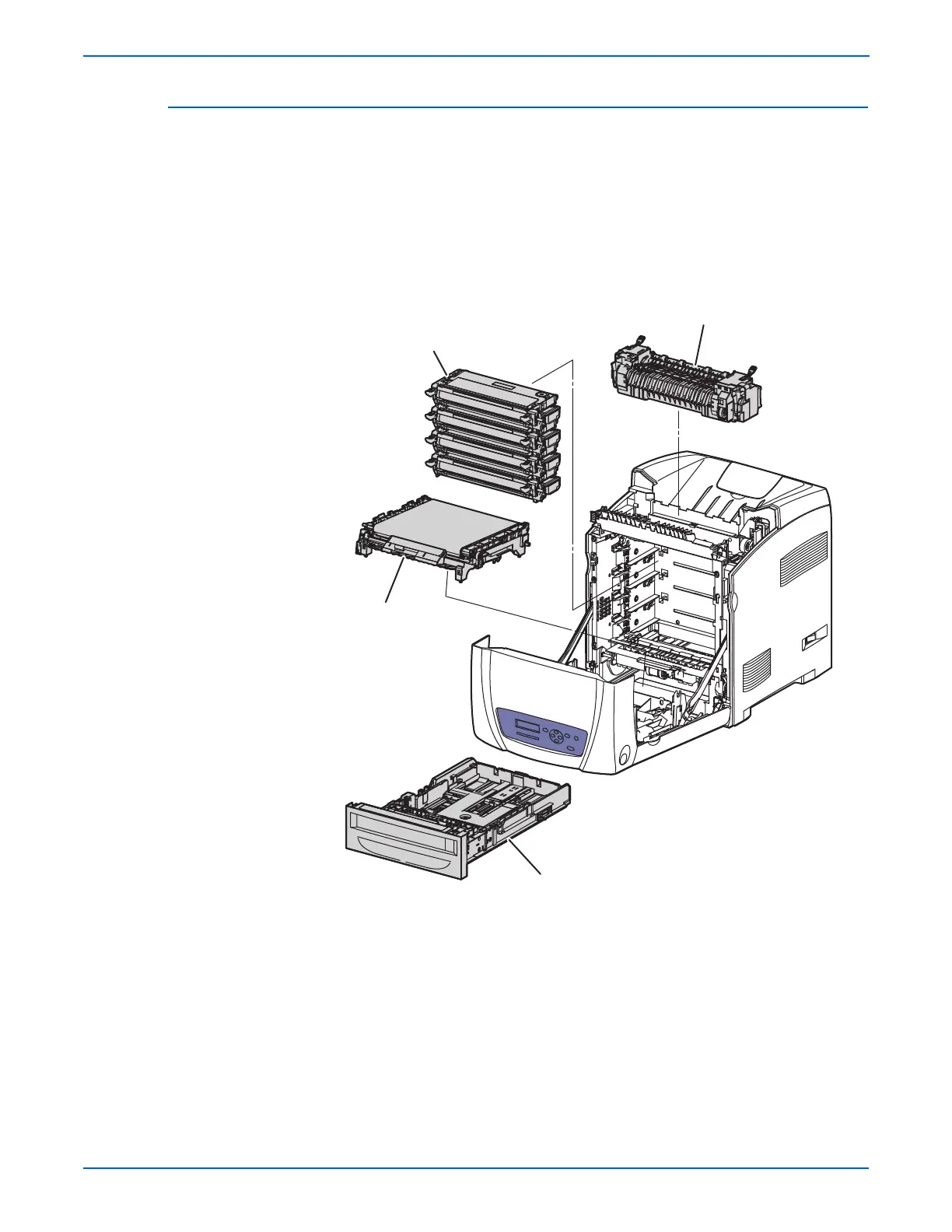

s6280-166
Fuser
Print Cartridges
Transfer Unit
Tray 2
To Next Page
