Phaser 6280 Color Laser Printer Service Manual 8-109
Service Parts Disassembly

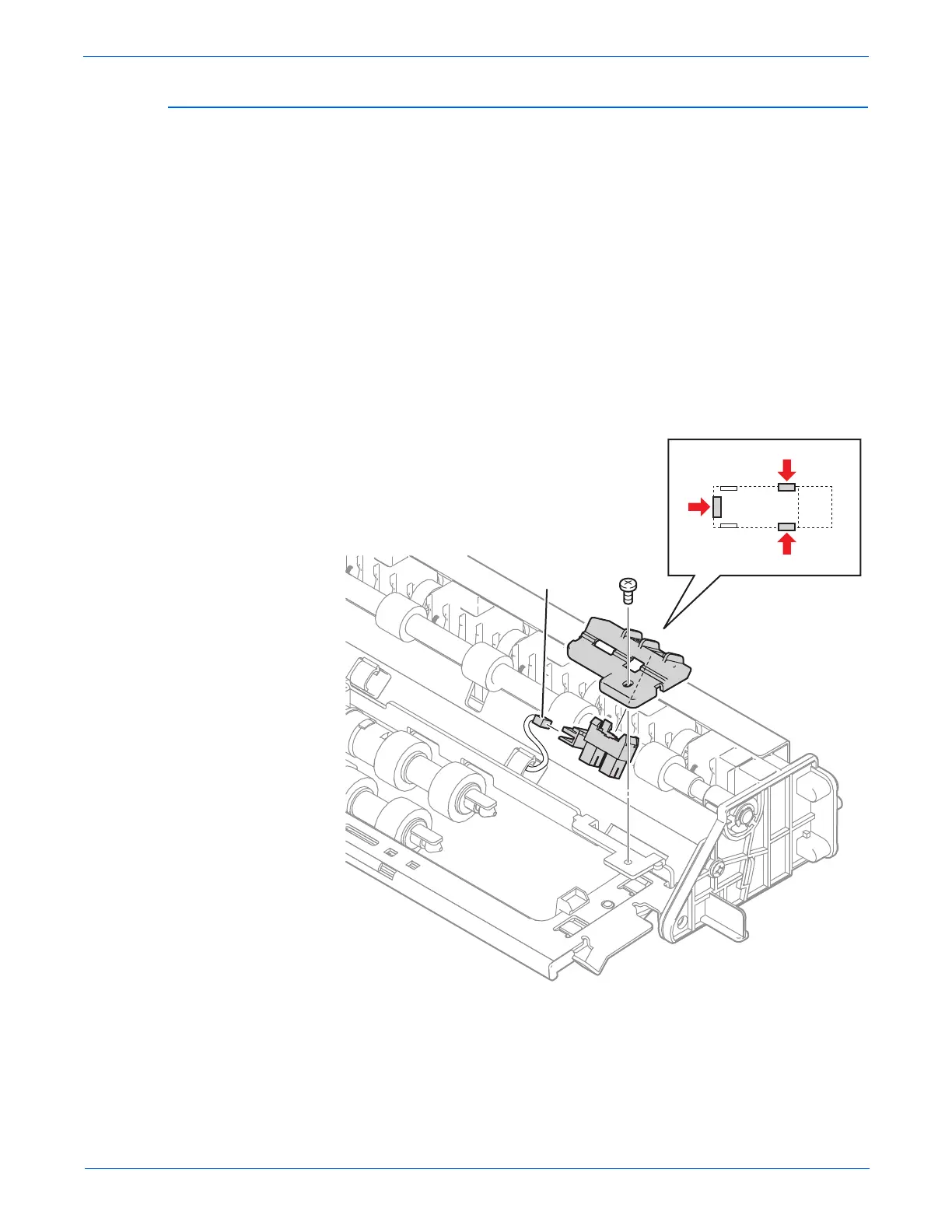

Tray 3 No Paper Sensor (PL12.3.14)
1. Remove Tray 3.
2. Remove the Tray 3 Left Cover (page 8-101).
3. Remove the Tray 3 Right Cover (page 8-105).
4. Remove the Tray 3 Turn Clutch (page 8-103).
5. Remove the Tray 3 Feed Clutch (page 8-104).
6. Remove the Tray 3 Feeder Assembly (page 8-107).
7. Remove 1 screw (6 mm) securing the No Sensor Holder (PL12.3.13) to
the Feeder Assembly (PL12.3.1).
8. Remove the No Sensor Holder.
9. Release the 3 hooks securing the No Paper Sensor to the No Sensor
Holder.
10. Remove the No Paper Sensor.
11. Disconnect the No Paper Sensor wiring harness connector P/J42121.
s6180-235
J42121
