Phaser 6280 Color Laser Printer Service Manual 8-35
Service Parts Disassembly
Tray 1 (MPT) No Paper Sensor (PL3.1.15)

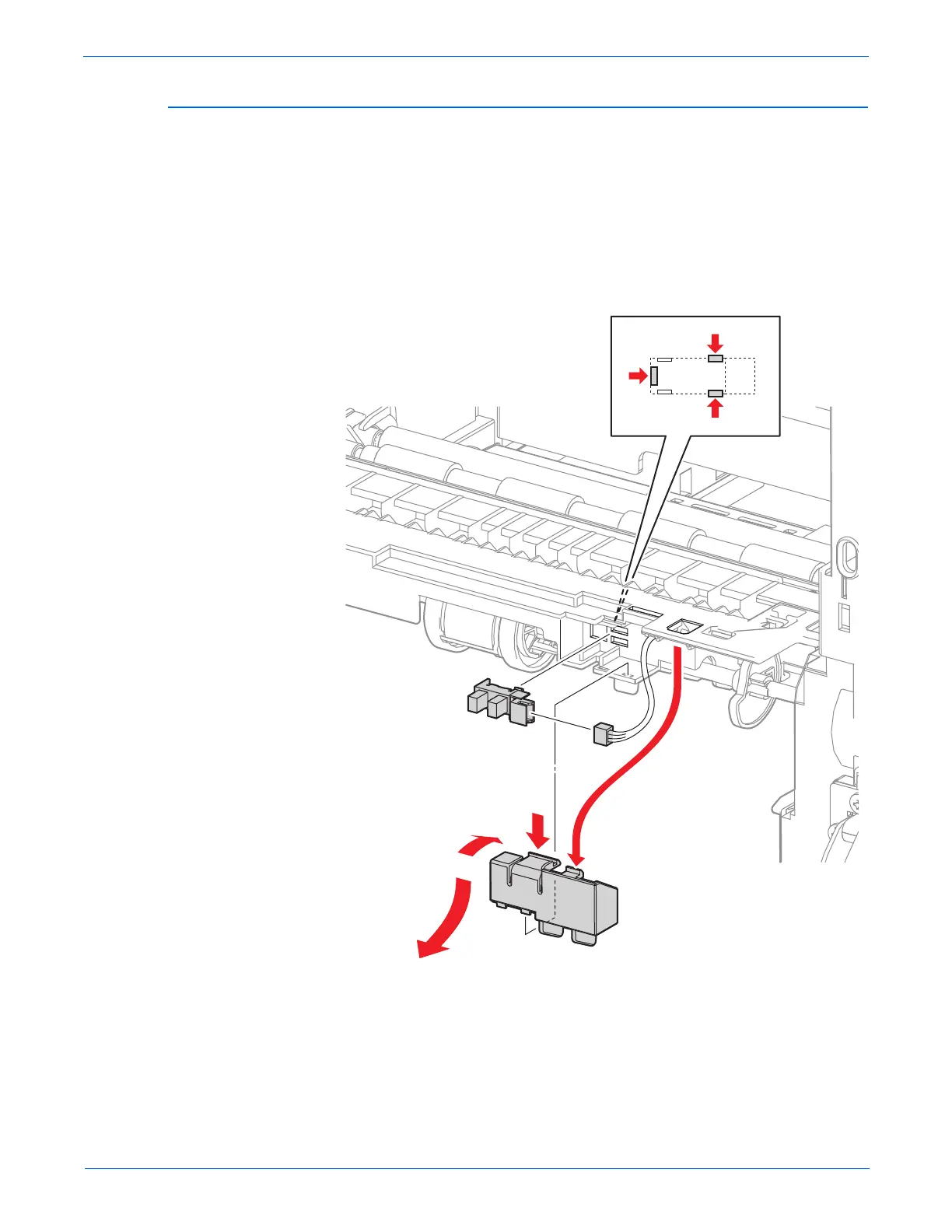

1. Remove Tray 2.
2. Release the Cover Sensor hook (PL3.1.16).
3. Push the Cover Sensor backward while pressing on the lower side of the
Sensor to remove the latch on the upper right side of the Cover Sensor
from the MPT Chute (PL3.1.14).
4. Release the sensor hooks from the Feed Roller Assembly and remove the
Tray 1 (MPT) No Paper Sensor from the MPT Chute.
5. Disconnect the Tray 1 (MPT) No Paper Sensor connector P/J2821.
