4-8 Phaser 6280 Color Laser Printer Service Manual
General Troubleshooting
Printer Components

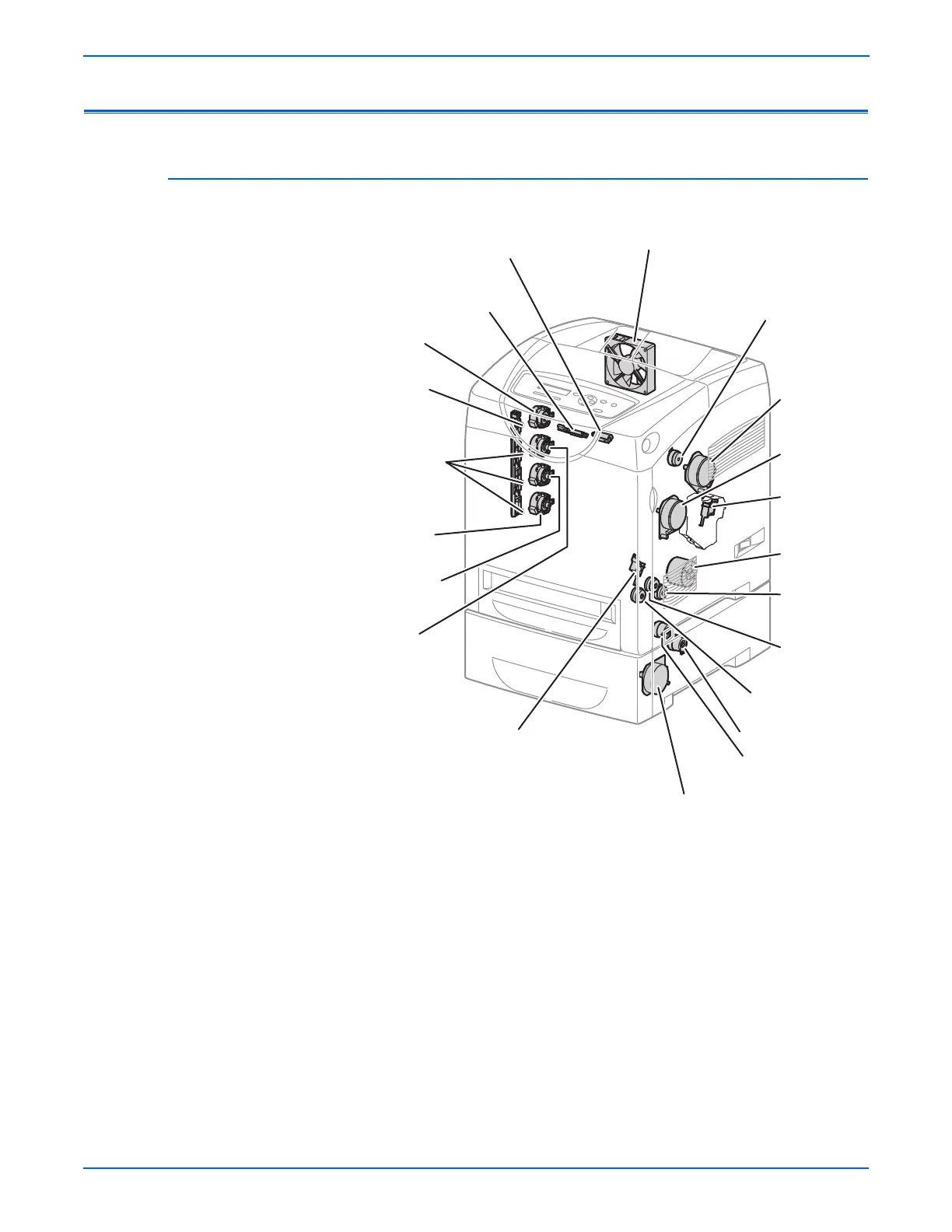

Motors, Clutches, Solenoids, Lamps
s6280-118
Black Toner Motor
Black Erase Lamp
Yellow,
Magenta, Cyan
Erase Lamps
Yellow Toner
Motor
Magenta Toner
Motor
Cyan Toner
Motor
MPT Feed Solenoid
Exit Clutch
Sub Motor
Main Motor
K Mode
Clutch On
PH Motor
Tray 2
Feed Clutch
Regi Clutch
MPT Turn Clutch
Tray 3 Turn Clutch
Fan
ADC(CTD)
Sensor Solenoid
ADC(CTD) Sensor LED
Tray 3 Feed Clutch
Tray 3 Feed Motor
