8-100 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Optional 550-Sheet Feeder
Optional 550-Sheet Feeder (PL12.1.1)
1. Remove Tray 2.

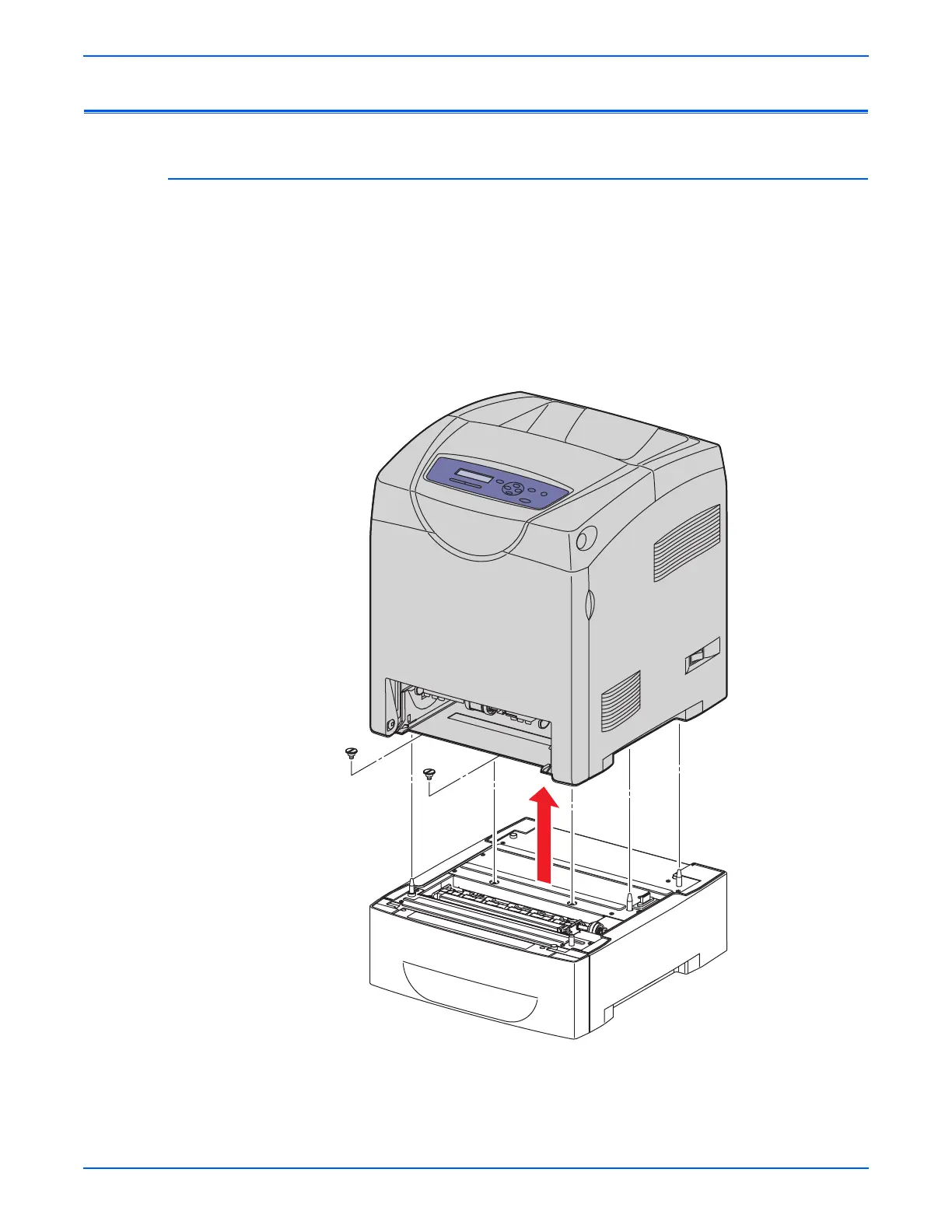

2. Remove the 2 Joint screws securing the printer to the Optional 550-Sheet
Feeder.
Caution
Lifting the printer requires two people. Use care when removing the
printer from the Optional 550-Sheet Feeder.
3. Lift the printer from the Optional 550-Sheet Feeder.
s6280-254
