Xerox Phaser 6280 - Tray 2 Cover (PL1.1.5)

8-18 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Tray 2 Cover (PL1.1.5)
1. Remove Tray 2.
2. Pull the Tray 2 Cover all the way out until it stops.

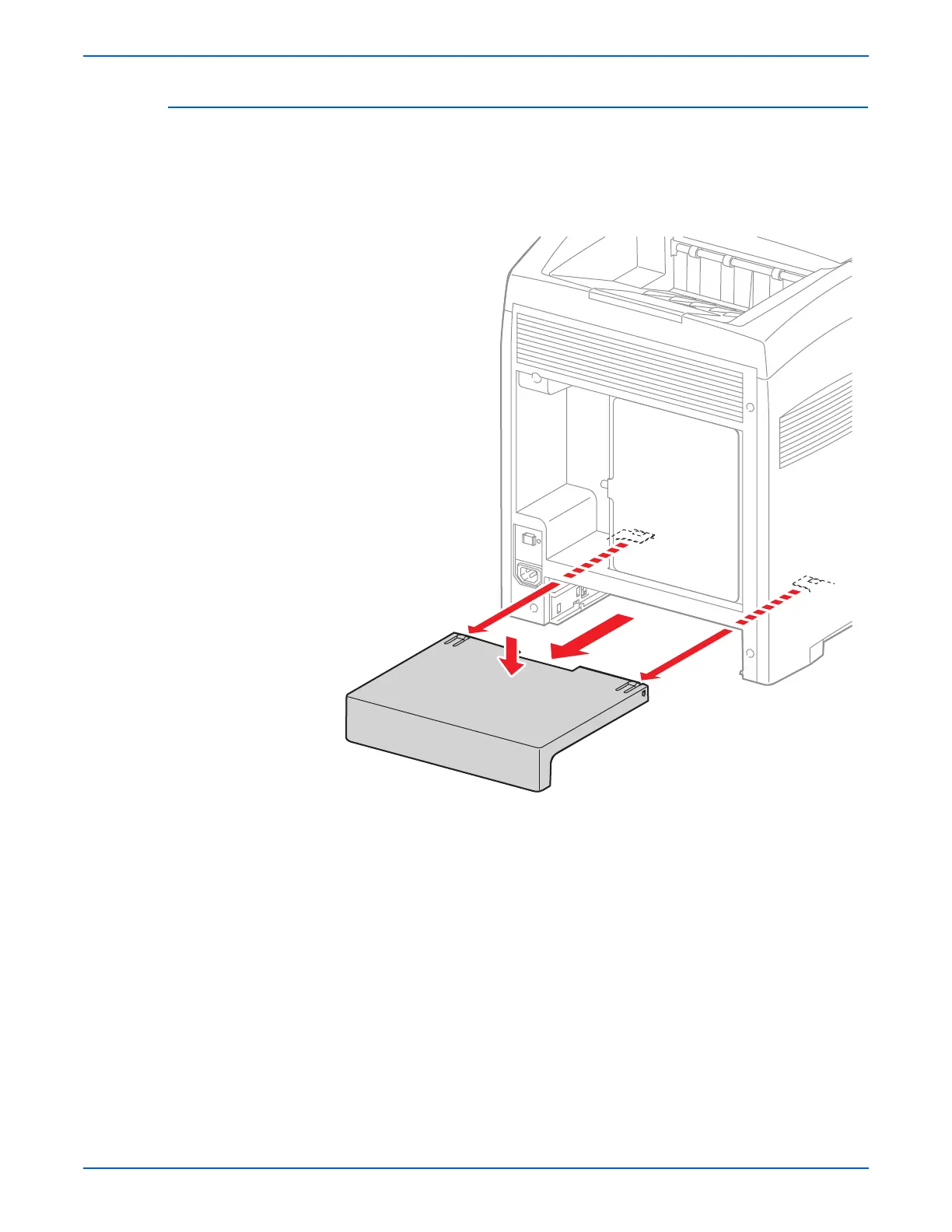

3. Press the center part of the Tray 2 Cover to release the hooks (on the left
and right sides) and remove the Tray 2 Cover from the printer.
s6280-178
