Cleaning the ADC Sensor
1. Open the Front Cover.
2. Remove the Transfer Unit (page 8-8).
3. Place the Transfer Unit on a flat work surface.

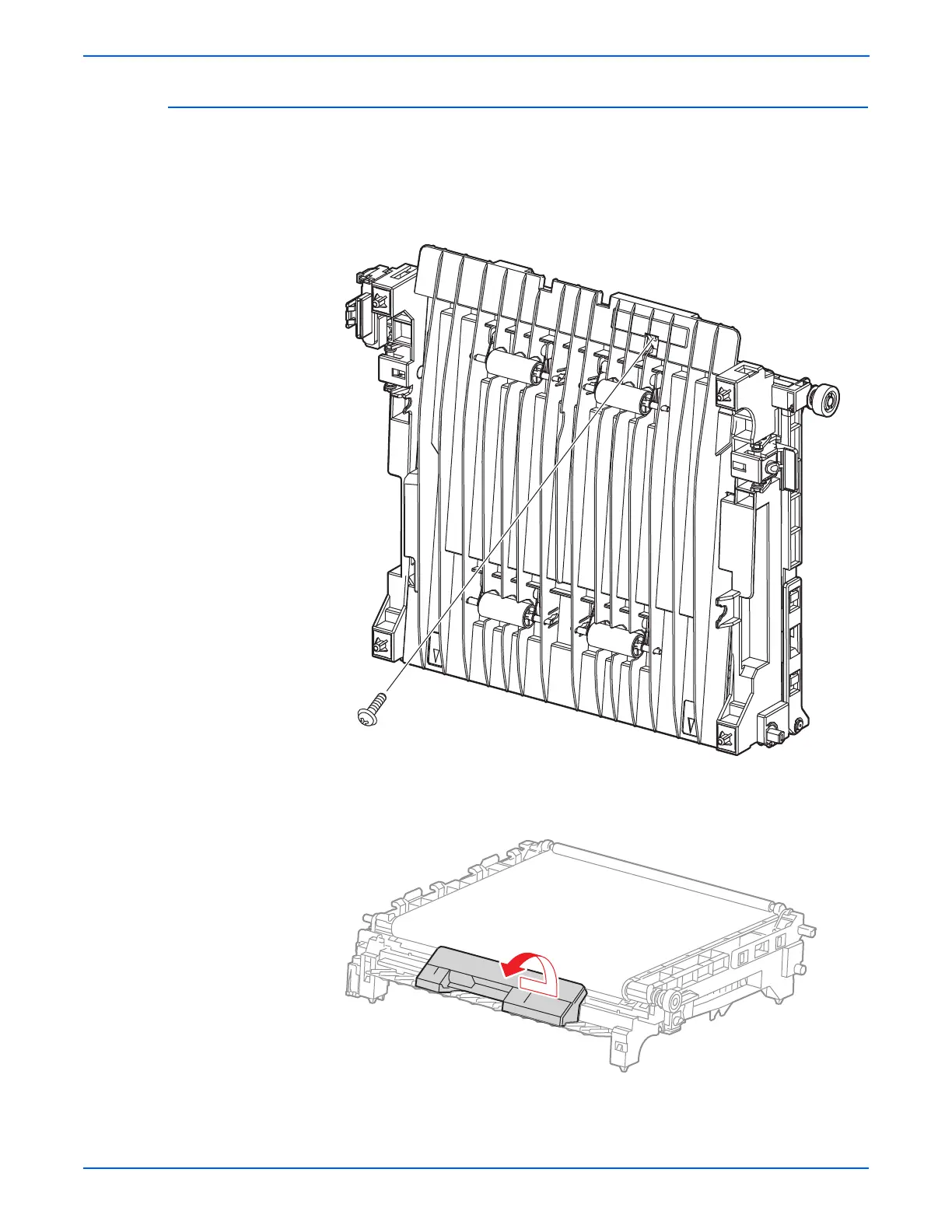

4. Remove 1 screw securing the ADC Sensor Cover.
5. Slide the ADC Cover slightly to the right and rotate forward to remove the
cover.
s6280-302
s6280-303
