Xerox Phaser 6280 - Paper Feeder; Tray 1 (MPT) Feed Solenoid (PL3.1.3, PL3.1.99)

8-30 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly
Paper Feeder
Tray 1 (MPT) Feed Solenoid (PL3.1.3, PL3.1.99)
1. Remove the Rear Cover (page 8-12).
2. Remove the Right Side Cover (page 8-13).
3. Remove the MPT Feed Spring (PL3.1.4).
4. Release the hook and remove the MPT Gear (PL3.1.5) from the MPT
Shaft (PL3.1.12).

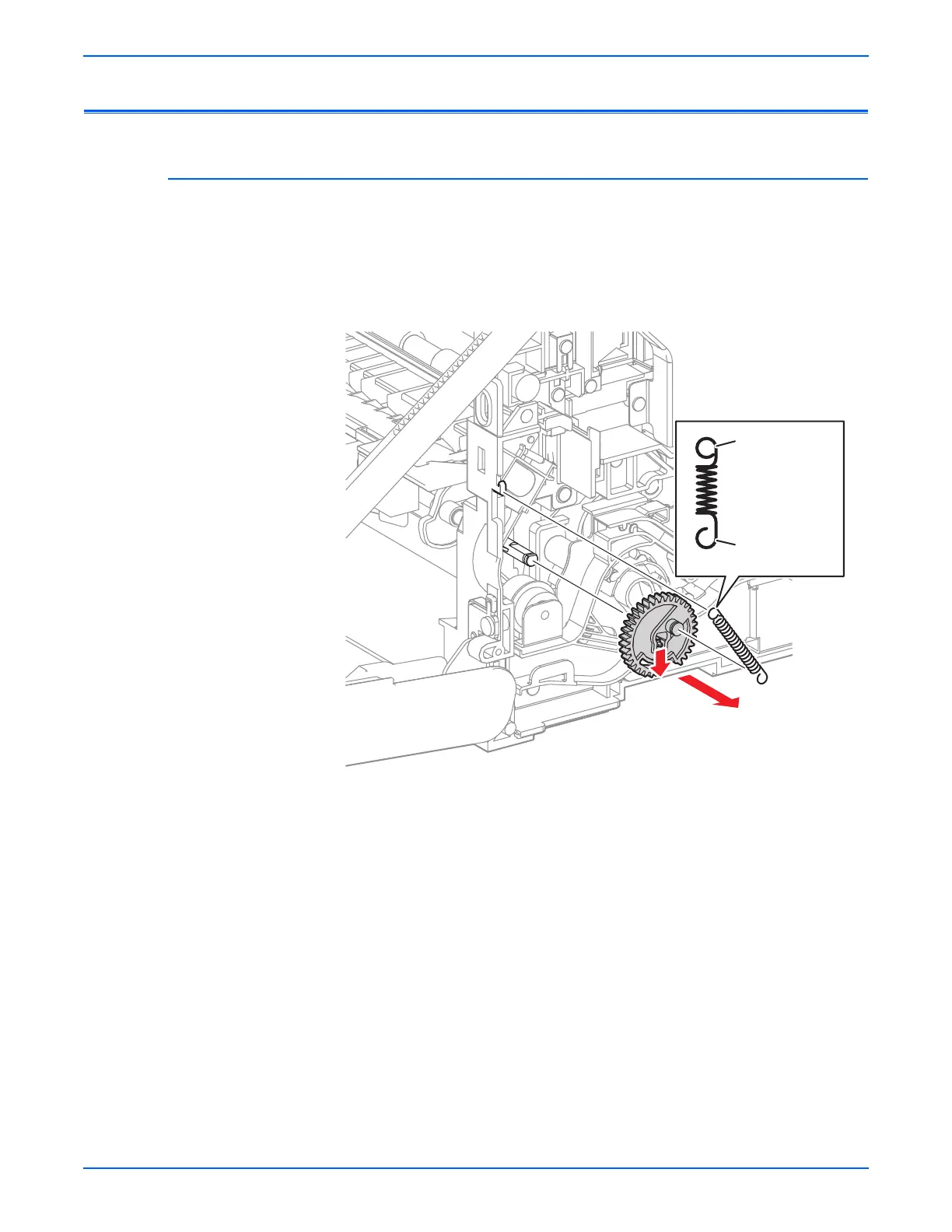

s6280-189
Printer Side
MPT Gear Side
