Xerox Phaser 6280 Service Manual

2-30 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation
Transfer Unit
The Transfer Unit consists of the Belt, ADC Sensor, ADC Solenoid, and ADC
Pad.
■ Belt
The Belt feeds the paper toward the direction of the Fuser.
■ ADC Sensor
The ADC Sensor detects the toner patches on the Belt and converts them
to voltage value. The voltage value is used to control density of toner.

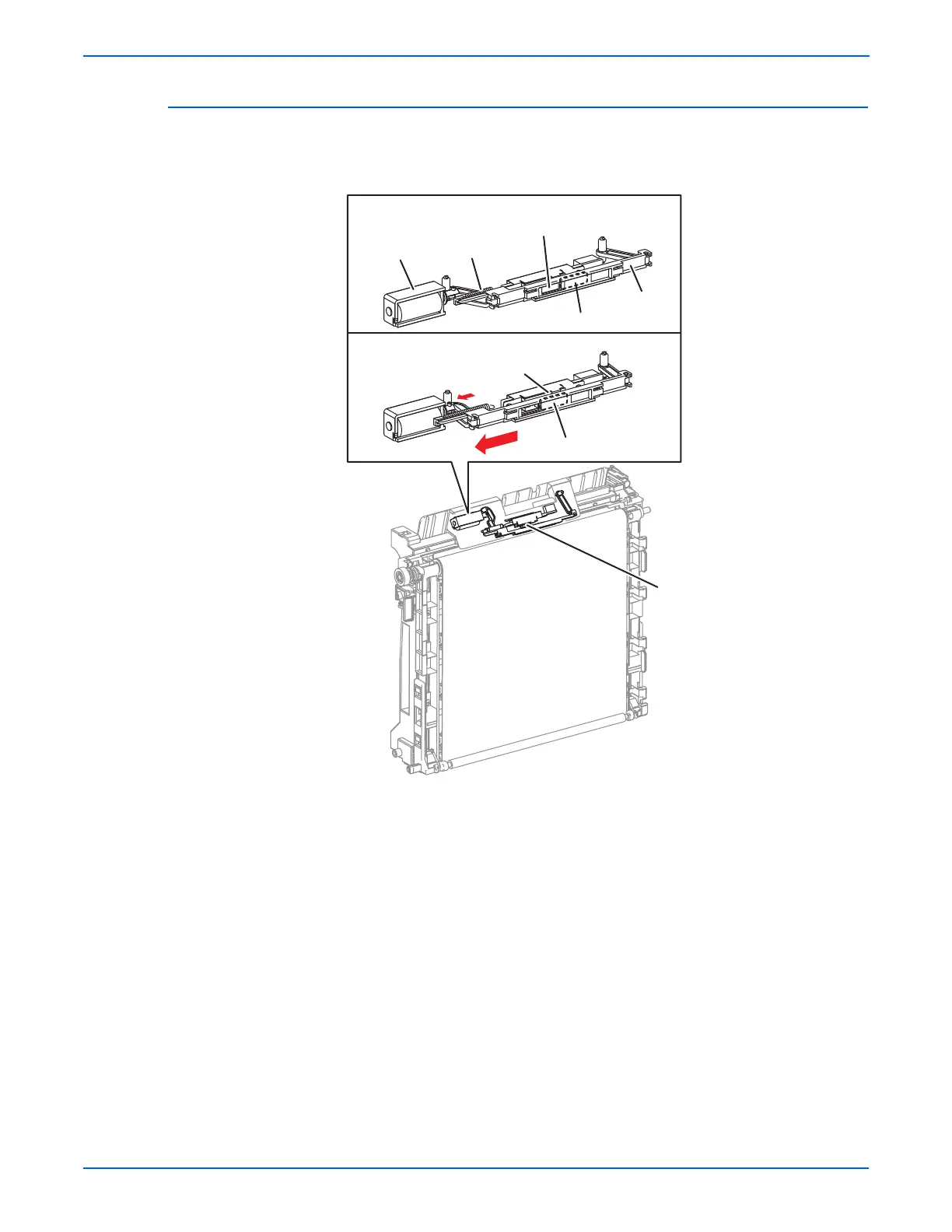

■ ADC Solenoid
To activate the ADC Pad, turn On the ADC Solenoid for a fixed time
before the ADC Sensor starts reading the toner patches. When turned
On, the ADC Solenoid activates the ADC Pad, which cleans
contamination on the ADC Sensor surface.
s6280-077
Normal Position
Spring
ADC Solenoid
ADC Solenoid On
Position of ADC Sensor
(Window = Open)
ADC Pad
ADC Pad
Shutter
Position of ADC Sensor
ADC Sensor

Xerox Phaser 6280 Specifications

General

Print Resolution	Up to 600 x 600 x 4 dpi
Processor	400 MHz
Operating System Compatibility	Windows, Mac OS, Linux
Print Technology	Laser
Monthly Duty Cycle	70, 000 pages
Memory	256 MB (standard)
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Legal, Letter
Maximum Paper Size	8.5 x 14 inches
