8-104 Phaser 6280 Color Laser Printer Service Manual
Service Parts Disassembly

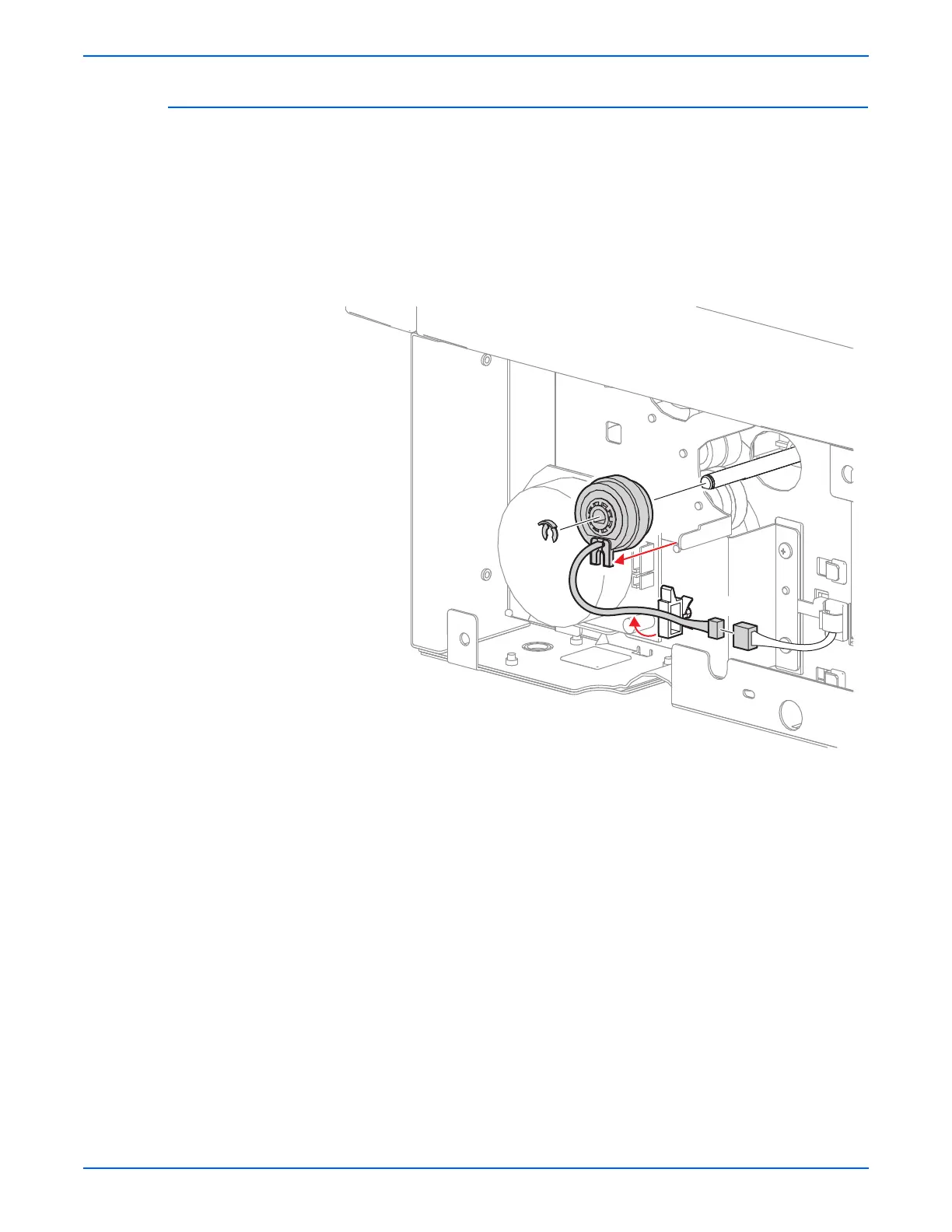

Tray 3 Feed Clutch (PL12.1.6)
1. Remove Tray 3 from the Optional 550-Sheet Feeder.
2. Remove the Tray 3 Right Cover (page 8-102).
3. Disconnect the Tray 3 Feed Clutch wiring harness connector P/J4213.
4. Release the Clamp securing the Tray 3 Feed Clutch wiring harness.
5. Remove the E-ring securing the Tray 3 Feed Clutch to the Feed Shaft
(PL12.3.18).
6. Remove the Tray 3 Feed Clutch from the Feed Shaft.
s6280-258
P/J4213
