Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 8-17
Service Parts Disassembly
Note
When performing the following step, be careful not to drop the Front Cover
Assembly.

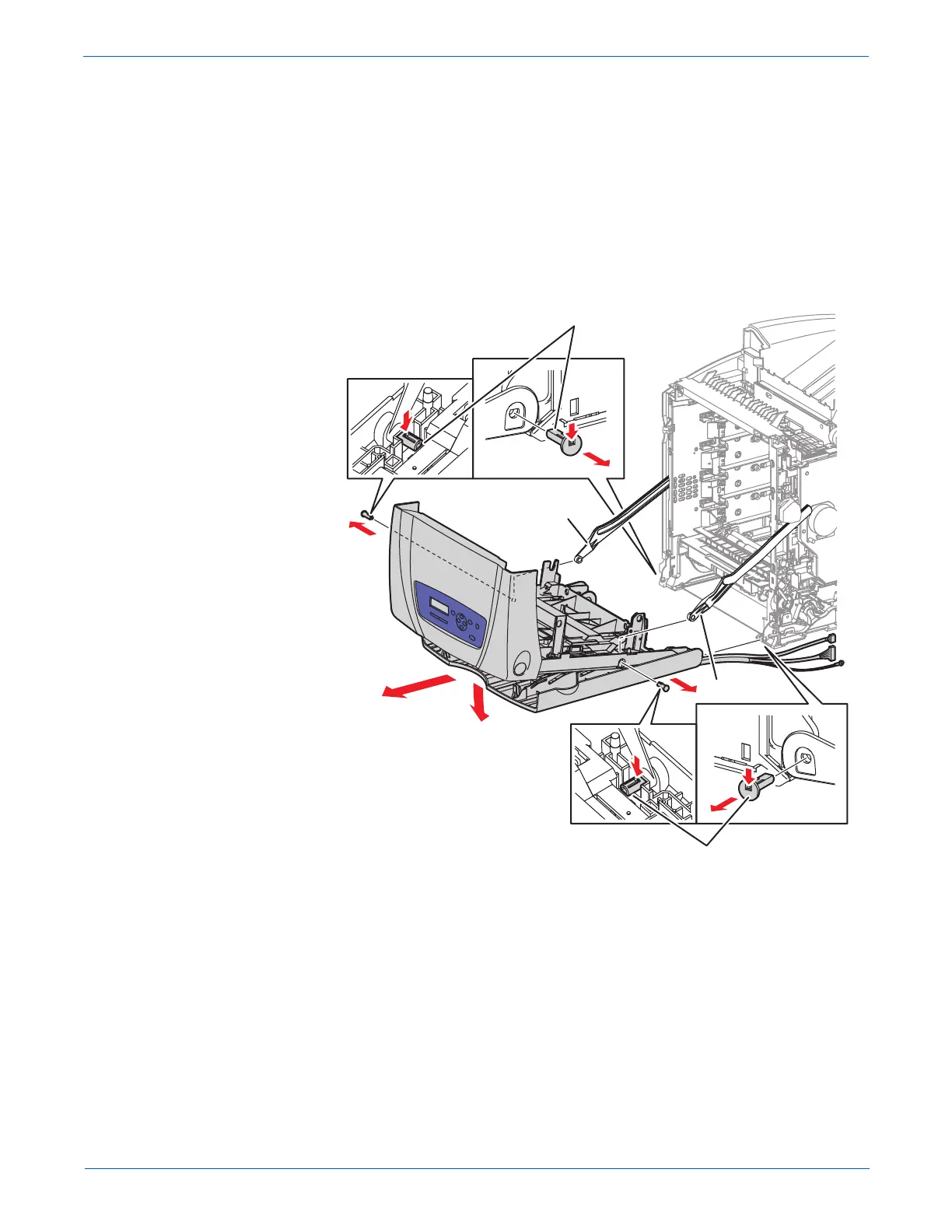

8. Release the hook of the Shaft Pivot on the left and right side of the Front
Cover. Pull the Shaft Pivot outward while holding the Front Cover and
remove the Cover from the Left and Right Links (PL 7.1.13).
9. From the outside of Tray 1, release the hooks of the Shaft Pivot (PL
1.2.30) securing the Front Cover to the printer and pull out the Shaft Pivot.
10. Remove the Front Cover together with the Tray 1 (MPT) Cover.
11. Remove Tray 1 (MPT) Cover from the Front Cover.
Replacement Note
Replacement Note
Ensure to tilt the Front Cover accordingly when mounting the Front
Cover. Push the Shaft Pivot in all the way to secure the hooks of the
Shaft Pivots to the Left and Right Links.
s6280-177
Left Link
Right Link
Shaft Pivots
Shaft Pivots

Xerox Phaser 6280 Specifications

General

Print Resolution	Up to 600 x 600 x 4 dpi
Processor	400 MHz
Operating System Compatibility	Windows, Mac OS, Linux
Print Technology	Laser
Monthly Duty Cycle	70, 000 pages
Memory	256 MB (standard)
Connectivity	USB 2.0, Ethernet
Media Sizes Supported	A4, A5, B5, Executive, Legal, Letter
Maximum Paper Size	8.5 x 14 inches
