Phaser 6280 Color Laser Printer Service Manual 8-71
Service Parts Disassembly
7. Remove 2 screws (10 mm) securing the Fuser Bracket (PL6.1.12) to the
printer.
DO NOT separate the Fuser Bracket and the printer too far apart,
because they are connected by a wiring harness.
8. Move the Fuser Bracket over to the top side of the printer.
Leave the Relay connector on the printer harness side.
9. Release the Exit Clutch wiring harness from the clamp on the printer
frame.
10. Disconnect the wiring harness connector P/J235.
11. Disconnect the Main Motor wiring harness connector P/J222 and the Sub
Motor wiring harness connector P/J221.
12. Remove 1 screw (6 mm) and 1 screw (tap, 10 mm) securing the Ground
Plate (PL8.1.11) to the Main Drive Assembly and the PH Drive Assembly
(PL8.1.7).
13. Remove the Ground Plate from the printer.

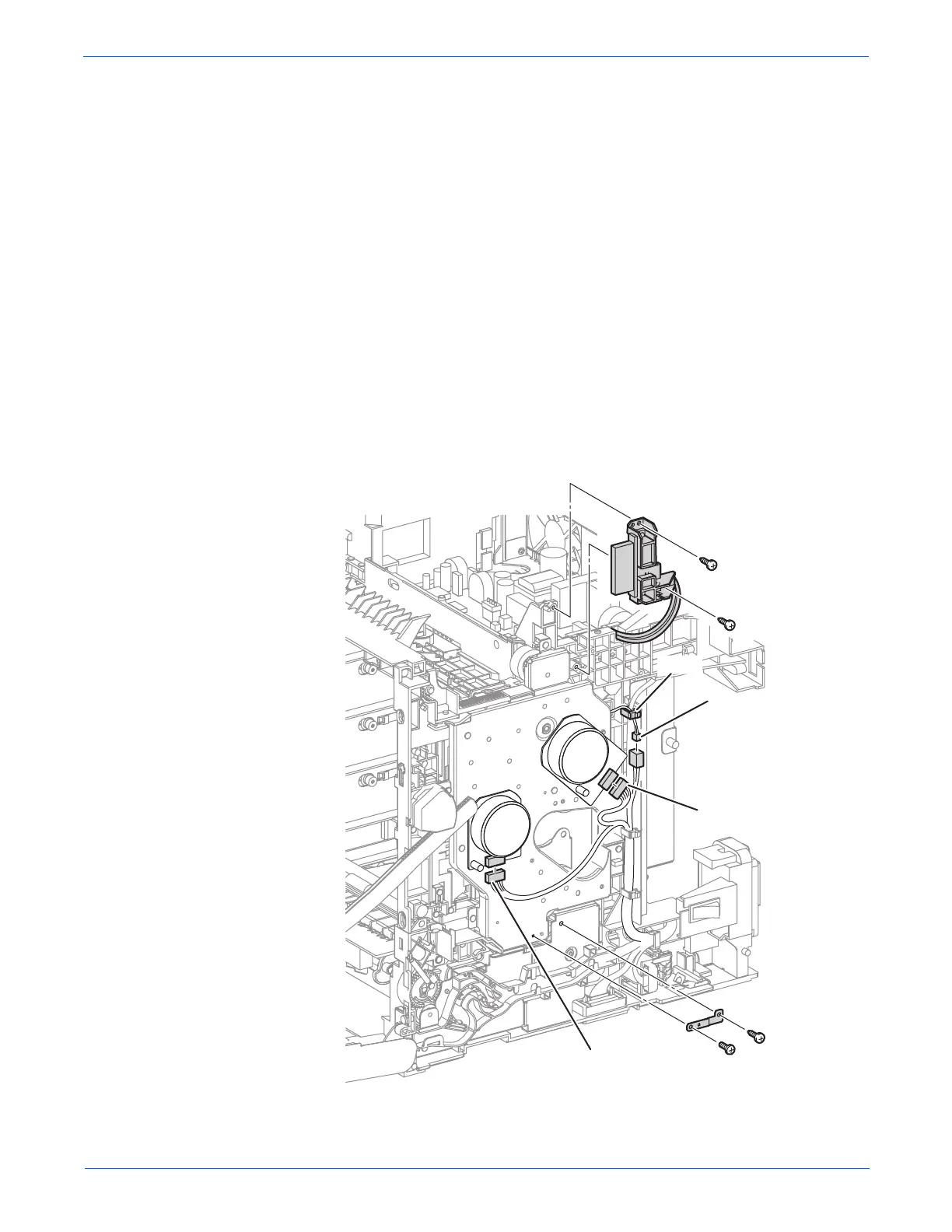

s6280-225
P/J235
Clamp
P/J222
P/J221
To Next Page
