2-50 Phaser 6280 Color Laser Printer Service Manual
Theory of Operation
■ Tray 3 Size Switch
The Size Switch detects the paper size and the presence of the paper
tray.

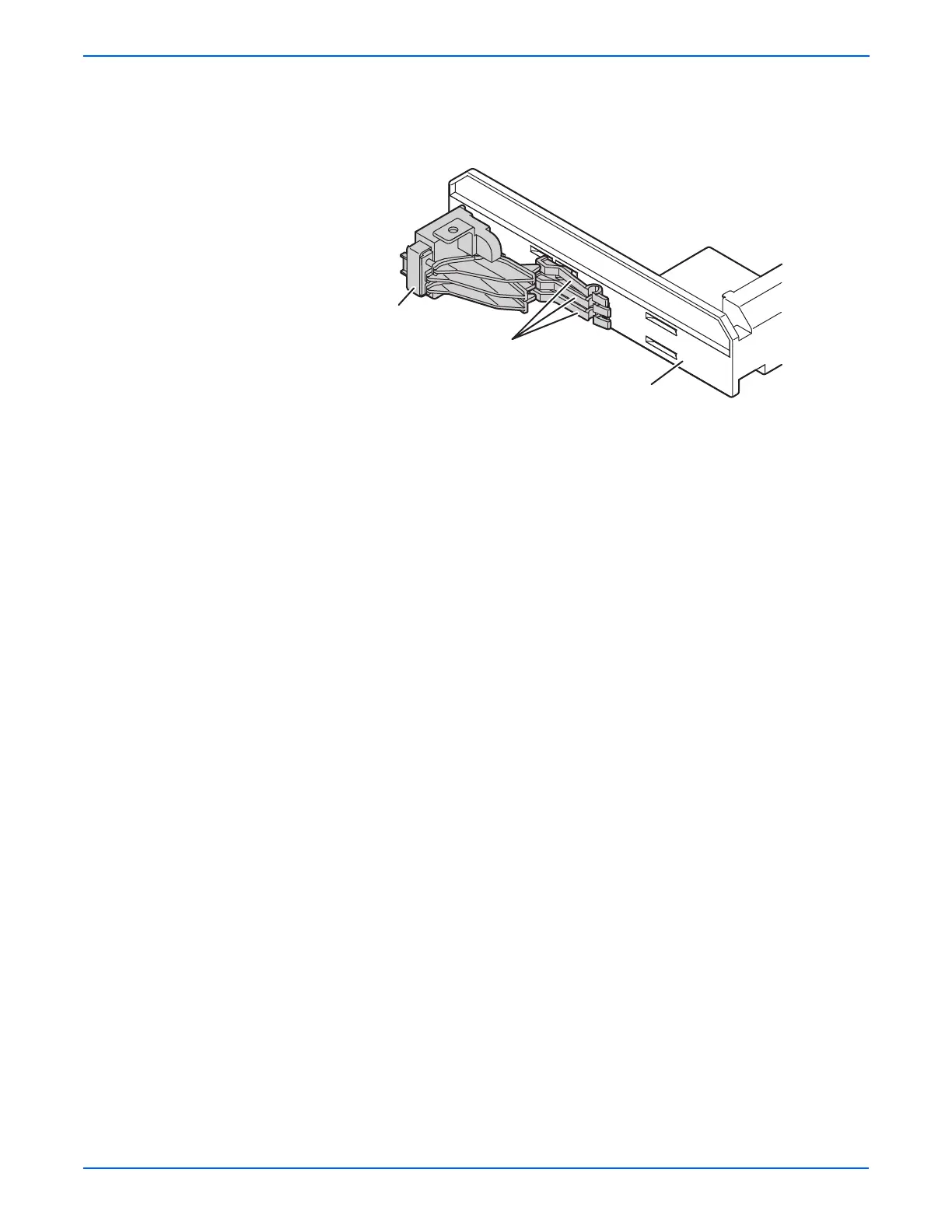

s6280-094
Size Switch
Size Switch Actuator
Tray End Guide
