Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 4-43
General Troubleshooting
Tray 2 Motor (FULL2/HALF)
Caution
The Tray 2 Motor is located in the Main Drive Assembly. When performing
this procedure, remove and cover the Print Cartridges to avoid exposure
to light.
Note
The rotational speed of the Tray 2 Motor is as follow: HALF < FULL2
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-8).
4. Remove the Print Cartridges (page 8-10).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Tray 2 Motor (FULL2/HALF) test: Engine Diag > Motor Test
> Tray 2 Motor (FULL2/HALF).

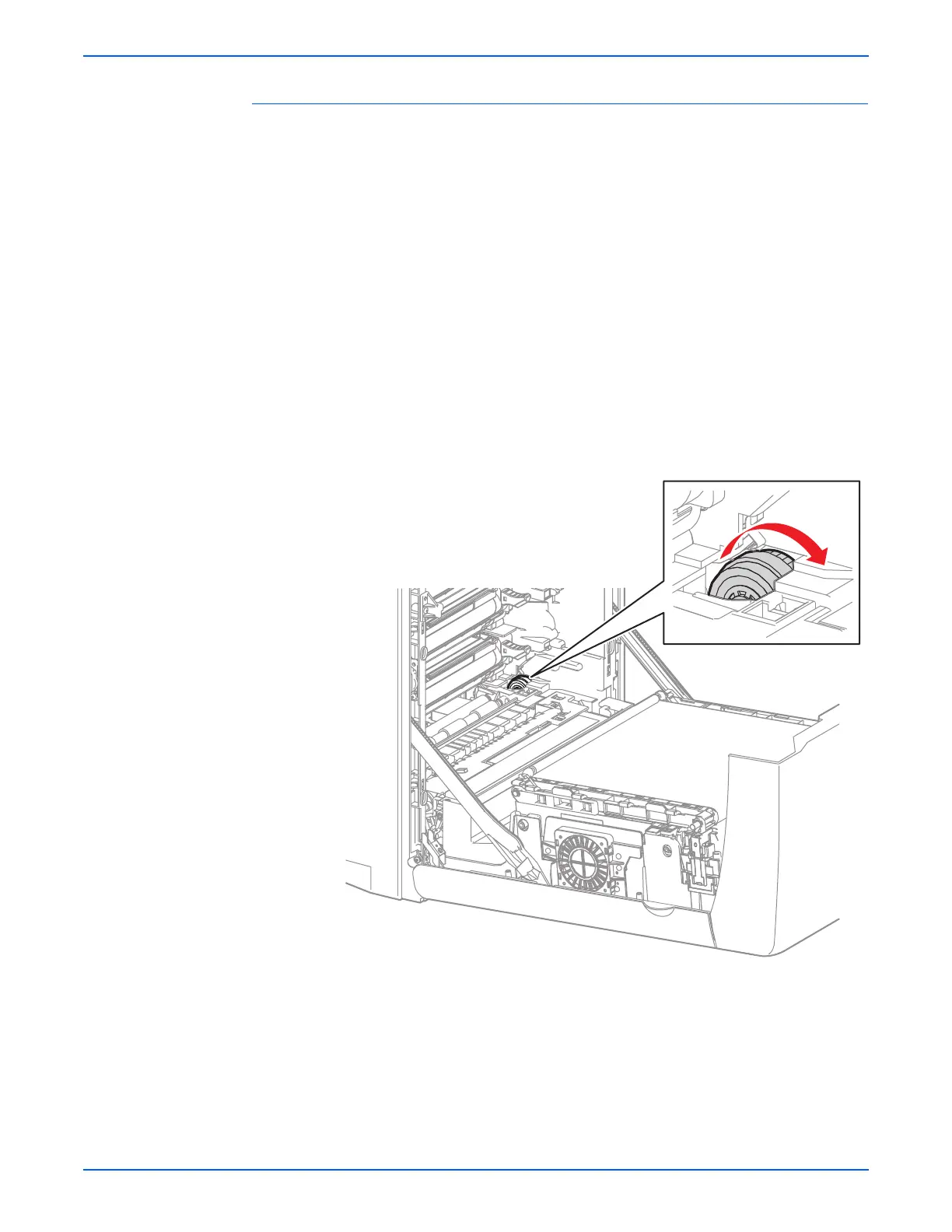

7. Verify that the Tray 2 Motor is running and the gear is rotating.
8. Press the Cancel button to stop the Tray 2 Motor test.
9. Remove the paper clip from the Interlock Switch.
s6280-137
