Xerox Phaser 6280 Service Manual

Phaser 6280 Color Laser Printer Service Manual 4-45
General Troubleshooting
Tray 3 Feed Motor (FULL2/HALF)
Note
The rotational speed of the Motor is as follow: HALF < FULL2
1. Enter the Service Diagnostic menu (page 4-5).
2. Remove Tray 3.
3. Remove the Tray 3 Left Cover (page 8-101).
4. Perform the Tray 3 Feed Motor (FULL2/HALF) test: Engine Diag > Motor
Test > Tray 3 Feed Motor (FULL2/HALF).
5. Verify that the Tray 3 Feed Motor is running.
6. Press the Cancel button to stop the Tray 3 Feed Motor test.

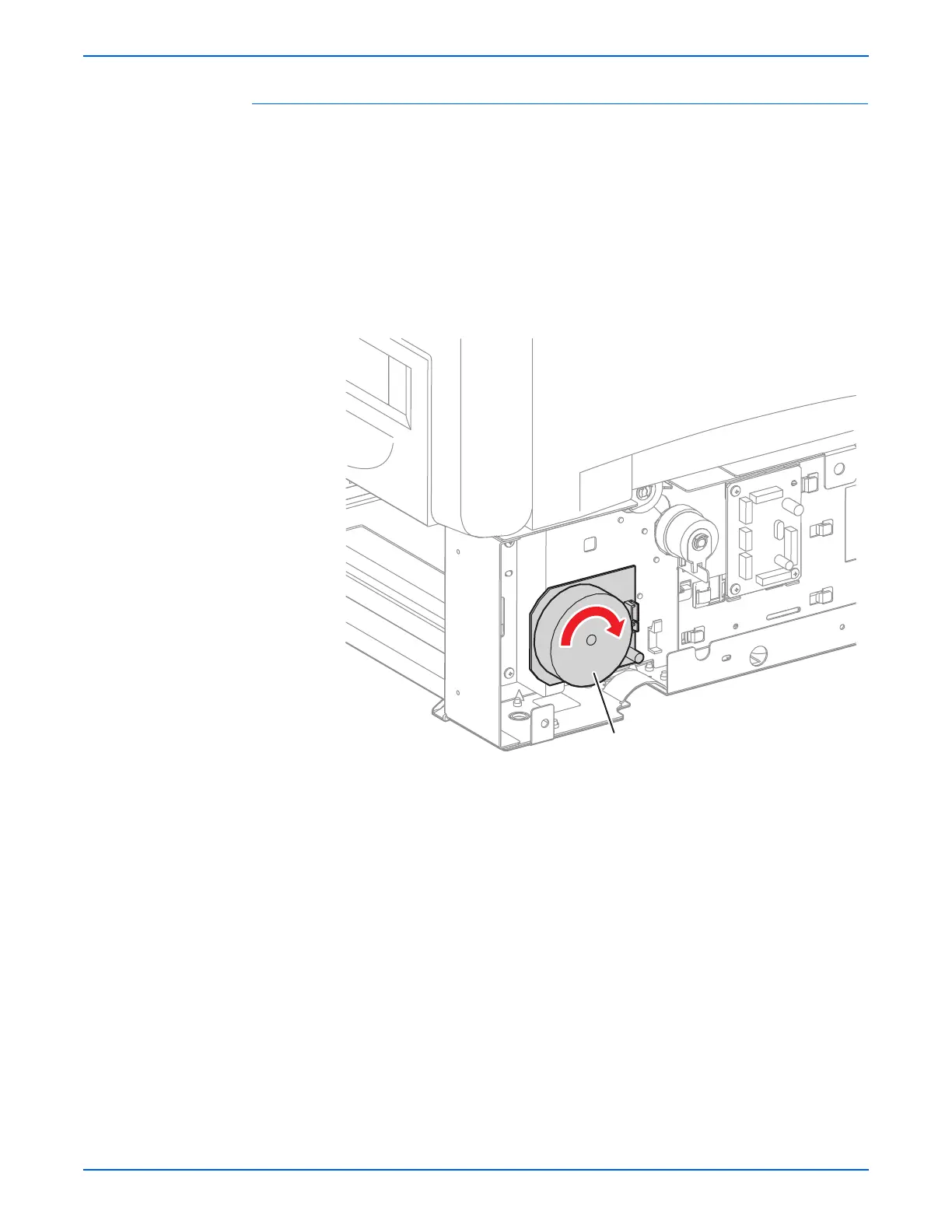

s6280-140
Tray 3 Feed Motor
