Xerox Phaser 6280 Service Manual

4-48 Phaser 6280 Color Laser Printer Service Manual
General Troubleshooting
Magenta Toner Motor
Caution
When performing this procedure, remove and cover the Print Cartridges
to avoid exposure to light.
1. Enter the Service Diagnostic menu (page 4-5).
2. Open the Front Cover.
3. Remove the Transfer Unit (page 8-8).
4. Remove the Print Cartridges (page 8-10).
5. Use a paper clip to secure the Interlock Switch.
6. Perform the Magenta Toner Motor test: Engine Diag > Motor Test >
Magenta Toner Motor.
7. Verify that the Magenta Toner Motor is running and the gear is rotating.
8. Press the Cancel button to stop the Magenta Toner Motor test.
9. Remove the paper clip from the Interlock Switch.

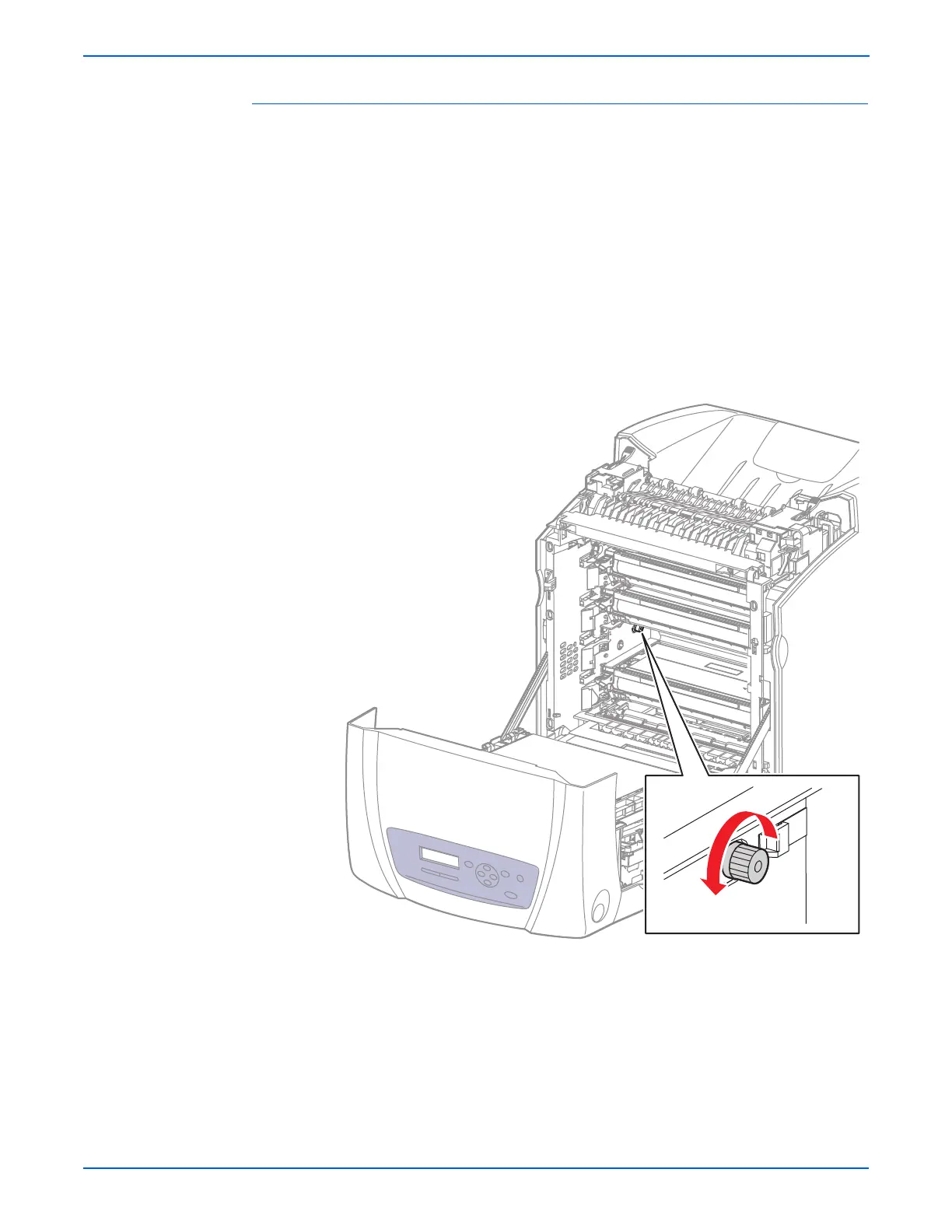

s6280-143
